Nathans Rebuilt, Steet Ported, Velocity Red RX8

For you to showcase what you've done to your car and give other members ideas and inspiration.
User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Tue Dec 22, 2015 7:28 pm

After spending the last 4 months cleaning, checking and collecting parts, I finally started my engine rebuild.

Here's some photos of today's progress.ImageImageImageImageImage

I hope to get the rebuild finished and get the engine in the car tomorrow. I will post more pictures tomorrow night.
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
MadTaz
Club Member
Club Member
Posts: 2446
Joined: Mon Aug 03, 2009 8:27 pm
RX-8: PZ
Colour: Brilliant Black
Location: Ipswich
Has thanked: 10 times
Been thanked: 37 times

Re: Nathans Velocity Red RX8

Post by MadTaz » Tue Dec 22, 2015 7:45 pm

Good job! And a street ported too! :xmasgrin:

User avatar
ChrisHolmes
Committee Member
Committee Member
Posts: 19641
Joined: Sun Jan 29, 2006 10:04 pm
RX-8: 231
Colour: Velocity Red
Location: Cheltenham
Has thanked: 5457 times
Been thanked: 2473 times

Re: Nathans Velocity Red RX8

Post by ChrisHolmes » Tue Dec 22, 2015 11:11 pm

Did you have the eshaft measured and checked for wear. I see it still has the stain in the oil groove area therefore has it not been polished?


Sent from my iPad using Tapatalk
AB Bucket seats and 5 point harnesses
Street Ported 231
Light weight Flywheel
Tein MonoSports with EDFC Active
Racing Beat F&R ARBs
Racing Brake 4 Pot Front Calipers
Racing Brake two piece slotted & drilled discs
LED Rear Lights
LED 3rd Brake light with blink effect
MazdaSpeed skirts
Safety Devices Full cage
Royal Steering wheel
Mishimoto Catch Tank

User avatar
MadTaz
Club Member
Club Member
Posts: 2446
Joined: Mon Aug 03, 2009 8:27 pm
RX-8: PZ
Colour: Brilliant Black
Location: Ipswich
Has thanked: 10 times
Been thanked: 37 times

Re: Nathans Velocity Red RX8

Post by MadTaz » Wed Dec 23, 2015 8:12 am

Nathan replaced the E shaft Chris, the stain in the oil groove is perfectly normal.

The E shaft looks good from what I can see

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Wed Dec 23, 2015 8:17 am

I did replace the e shaft that originally came of this engine. The e shaft I've used has very little wear.

Do you have to get them polished?
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
MadTaz
Club Member
Club Member
Posts: 2446
Joined: Mon Aug 03, 2009 8:27 pm
RX-8: PZ
Colour: Brilliant Black
Location: Ipswich
Has thanked: 10 times
Been thanked: 37 times

Re: Nathans Velocity Red RX8

Post by MadTaz » Wed Dec 23, 2015 8:29 am

No as long as everything is clean your good.

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Wed Dec 23, 2015 8:39 pm

Today's progress:

Got the front end of the engine finished and got the sump on.

Unfortunately I didn't seem to take any pictures between fitting the oil pump and fitting the front cover.

This is as far as I got today:

I have discovered that the plastic bit that distributes air to the oil injectors is broken (picture attached) does anyone have one they could send me?

04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Thu Dec 24, 2015 9:04 am

Does anyone have any tips for when it comes to mating the engine to the gearbox?

I recall the space was tight between the front of the engine and the sub-frame.
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Thu Dec 24, 2015 6:27 pm

So got the engine in the car.

However, I'm struggling to fully close the gap between the engine and gearbox. I'm sure the input shaft is in the clutch disc but the last 15mm seams impossible to close.


Anyone got any tips?
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sun Jan 10, 2016 9:37 pm

So got my clutch alignment tool and engine slid right on to the gearbox this time.

Here's a photo of the engine in, mounts bolted up and bell housing.

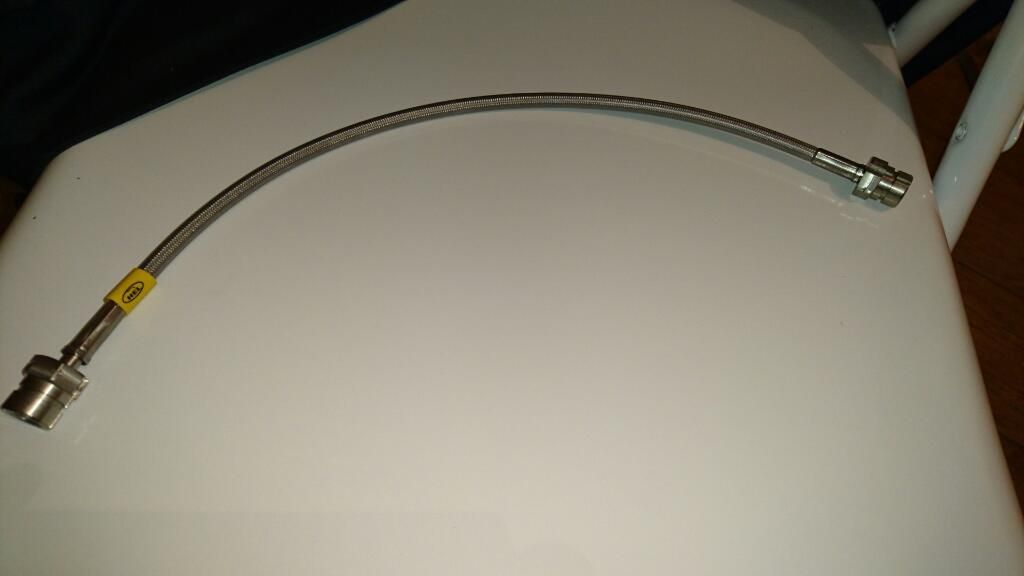

Unfortunately I snapped the rubber section of the clutch line. Must have caught the engine on it. This did however give me an excuse to install a stainless braided hose.


Today I got the harness connected up, upper manifold and oil filler neck fitted as well as the d585 coils and magnacore leads installed.


Then couldn't resist a trial fitting of my racing beat induction kit.


Millers oil and coolant from mx5 parts on order so should be able to get the engine started over the next week.
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
ChrisHolmes
Committee Member
Committee Member
Posts: 19641
Joined: Sun Jan 29, 2006 10:04 pm
RX-8: 231
Colour: Velocity Red
Location: Cheltenham
Has thanked: 5457 times
Been thanked: 2473 times

Re: Nathans Velocity Red RX8

Post by ChrisHolmes » Sun Jan 10, 2016 9:59 pm

It's looking good, not long till that tense moment when you turn the key and the engine comes to life.
AB Bucket seats and 5 point harnesses
Street Ported 231
Light weight Flywheel
Tein MonoSports with EDFC Active
Racing Beat F&R ARBs
Racing Brake 4 Pot Front Calipers
Racing Brake two piece slotted & drilled discs
LED Rear Lights
LED 3rd Brake light with blink effect
MazdaSpeed skirts
Safety Devices Full cage
Royal Steering wheel
Mishimoto Catch Tank

User avatar
Bulldog
Former Member
Former Member
Posts: 7450
Joined: Tue Apr 05, 2011 11:49 pm
RX-8: 231
Colour: Sunlight Silver
Location: Liverpool
Has thanked: 15 times
Been thanked: 90 times

Re: Nathans Velocity Red RX8

Post by Bulldog » Sun Jan 10, 2016 10:06 pm

Really got my fingers crossed for you mate hope she starts and runs well.
It is by going down into the abyss that we recover the treasures of life. Where you stumble, there lies your treasure.

More info in my project thread

Worry about your character, not your reputation. Your character is who you are, and your reputation is who people think you are.

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sun Jan 10, 2016 10:18 pm

Thanks for the comments guys.

Can't wait to get it started and drive it again. Keep sitting in the drivers seat making car noises :roll: , helps with motivation.

I'm really not ready for failure [-o<
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Fri Jan 15, 2016 7:40 pm

Got all my service items ordered and delivered on time, so hopefully I will get the engine started this weekend.


Is there anything I can pick up from halfords that I could premix for when I start up? Until I can get a long term solution ordered?
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sat Jan 16, 2016 5:36 pm

So got everything on the car today.

Alternator fitted, exhaust connected back up and new oil and spark plugs in the engine.

Used tap water as coolant for first start.

Then it came to the moment of truth.....

Fueled car up, checked everything over and connected the battery.

First turn of the key I got a single click...

Left it a moment or two then turned key again.
This time I got a consistent clicking noise that sounded like a relay.

Gave it another few moments and eventually it turned over, but still didn't start and ended with everything going black on the dash followed by the dials going nuts.

Can anyone tell me how to find the problem?
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
Phil Bate
Spin Doctor
Spin Doctor
Posts: 9256
Joined: Thu Mar 22, 2012 12:49 am
RX-8: 231
Colour: Sunlight Silver
Location: South Wales
Has thanked: 36 times
Been thanked: 169 times

Re: Nathans Velocity Red RX8

Post by Phil Bate » Sat Jan 16, 2016 6:54 pm

You have a bad ground connection or dead battery by the sound of it. Double check the grounds on the front cross member, on the engine in front of the starter motor, and to the lower intake manifold then finally make sure the battery terminals are tight. Then check the battery is charged and slave it with another and give it another go - you may need to dry the plugs if it turned over for very long.
Phil's subtle sunlight silver - stronger, faster, with added red bits and stuff engine donor!
Operation Mint - Kuro preservation project
The pimped out Glacier White XE - quintessential British motoring from Jaguar

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sat Jan 16, 2016 8:23 pm

Thanks Phil, I'll take a look.
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sat Jan 23, 2016 3:30 pm

Today I've went over all the earths, cleaned the spark plugs and fitted the re-charged battery, and now the engine turns over every time.

Still not firing up though.

So I connected my OBD reader and checked the cranking speed.

The starter is only cranking the engine between 210 and 230 Rev's. Could this be the reason for the engine to starting?
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
MARKTHOMASBRAND
Club Member
Club Member
Posts: 13360
Joined: Mon May 10, 2010 1:29 am
Location: Stratford-Upon-Avon,Warwickshire.
Has thanked: 1469 times
Been thanked: 1505 times

Re: Nathans Velocity Red RX8

Post by MARKTHOMASBRAND » Sat Jan 23, 2016 4:01 pm

Not the fastest starter in the World but I'd say that was plenty to get it to fire :|

Regards,Mark.
Mark's : 2020 Championship White Honda Civic FK8 Type R .

Mandy's : 2019 Mazda MX-5 30th Anniversary RF # 1761/3000.

User avatar
Shagrington
Forum Moderator
Forum Moderator
Posts: 32150
Joined: Tue Sep 12, 2006 1:54 am
RX-8: 192
Colour: Sunlight Silver
Location: Surrey (in the urban bit)
Has thanked: 834 times
Been thanked: 856 times

Re: Nathans Velocity Red RX8

Post by Shagrington » Sat Jan 23, 2016 5:10 pm

Could be flooded from it turning over but not firing up.
These users thanked the author Shagrington for the post:
nnrouty (Sun Jan 24, 2016 4:31 pm)
'Grington.
former Club Treasurer 2010-18 (now finally retired) \:D/
Silver 192 green interior LEDS, Nordic Green hoop spoiler, roof inserts and wheels Silver Stripes

User avatar
MadTaz
Club Member
Club Member
Posts: 2446
Joined: Mon Aug 03, 2009 8:27 pm
RX-8: PZ
Colour: Brilliant Black
Location: Ipswich
Has thanked: 10 times
Been thanked: 37 times

Re: Nathans Velocity Red RX8

Post by MadTaz » Sat Jan 23, 2016 5:13 pm

It should be enough to get it going, have you actually tested to make your sparking?

Does it sound like it's trying to go or is it just dead? Can you smell fuel?

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sat Jan 23, 2016 5:16 pm

Haven't noticed a smell of fuel. No haven't tested if its sparking.

How's best to check?
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sat Jan 23, 2016 5:38 pm

[youtube][/youtube]
Last edited by nnrouty on Sat Jan 23, 2016 6:00 pm, edited 2 times in total.
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
MadTaz
Club Member
Club Member
Posts: 2446
Joined: Mon Aug 03, 2009 8:27 pm
RX-8: PZ
Colour: Brilliant Black
Location: Ipswich
Has thanked: 10 times
Been thanked: 37 times

Re: Nathans Velocity Red RX8

Post by MadTaz » Sat Jan 23, 2016 5:43 pm

Can you hear the pump when you turn the ignition over? If not check fuses.

Check for bad earths

To check the Sparks you can either get them out and put them near a good earth and watch for a spark while someone else turns over or get spark testers for about £15

Are your fuel injectors connected up the right way round? It's easy to connect the wrong electrical connector to the fuel injector.

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sat Jan 23, 2016 5:52 pm

I labelled wiring harness when I stripped it off the engine so I'm pretty confident with the injector connections.
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

Post Reply

Return to “Personal Car Projects and Mods”
