Nathans Rebuilt, Steet Ported, Velocity Red RX8

Post by nnrouty » Mon Jun 29, 2015 7:56 pm

For those of you who didn't read my intro posts, Hi I'm Nathan, an I've recently purchased a 2004 RX8 192ps in velocity red.

The car is struggling to start when hot so once I get my garage (rented) this week I will be starting to strip out the engine ready for a rebuild.

So no doubt I will be on here regularly looking for tips from those of you who have been through a rebuild before.

Once the engine is rebuilt and back in the car, I want to try and make the engine as visible as possible. I'm already planning to relocate the battery to the boot and remove the air con pump so I can mount the alternator on the side of the block.

I've been looking in the engine bay this afternoon and was wondering if any body had ever removed the plastic intake manifold (between the inlet manifold and the throttle body) as this seems to cover most the engine? Ideally I would like to make up a manifold that would bring the throttle body and mass airflow meter over to the drivers side of the engine bay?

Your comments would be appreciated.
Last edited by nnrouty on Tue Feb 09, 2016 9:18 pm, edited 2 times in total.
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
Shagrington
Forum Moderator
Forum Moderator
Posts: 32150
Joined: Tue Sep 12, 2006 1:54 am
RX-8: 192
Colour: Sunlight Silver
Location: Surrey (in the urban bit)
Has thanked: 834 times
Been thanked: 856 times

Re: Nathans Velocity Red RX8

Post by Shagrington » Mon Jun 29, 2015 8:18 pm

Good luck Nathan - and detailing it as you go here with photos will be much appreciated by a lot of people. :thumleft: I'm sure you will get plenty of help, advice and tips from those who have done the same/similar too.
'Grington.
former Club Treasurer 2010-18 (now finally retired) \:D/
Silver 192 green interior LEDS, Nordic Green hoop spoiler, roof inserts and wheels Silver Stripes

User avatar
acegeezer
Former Member
Former Member
Posts: 5843
Joined: Thu Feb 20, 2014 1:40 pm
RX-8: R3
Colour: Sparkling Black
Location: East Coast - Lincolnshire
Has thanked: 177 times
Been thanked: 132 times

Re: Nathans Velocity Red RX8

Post by acegeezer » Mon Jun 29, 2015 8:24 pm

As Shaggy says ^^ .. back up the rebuild with steps taken and pictures.. good luck m8 :thumleft:
John
R3-2009 "Sparkling Black" .. Gone but never to be forgotten 8)

New kid on the block .. Renault Megane RS 265 Diamond Black 2012 .. immaculate .. and quick :thumleft: Plus Honda CRV for the Dobermanns' :D

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sat Aug 22, 2015 1:54 pm

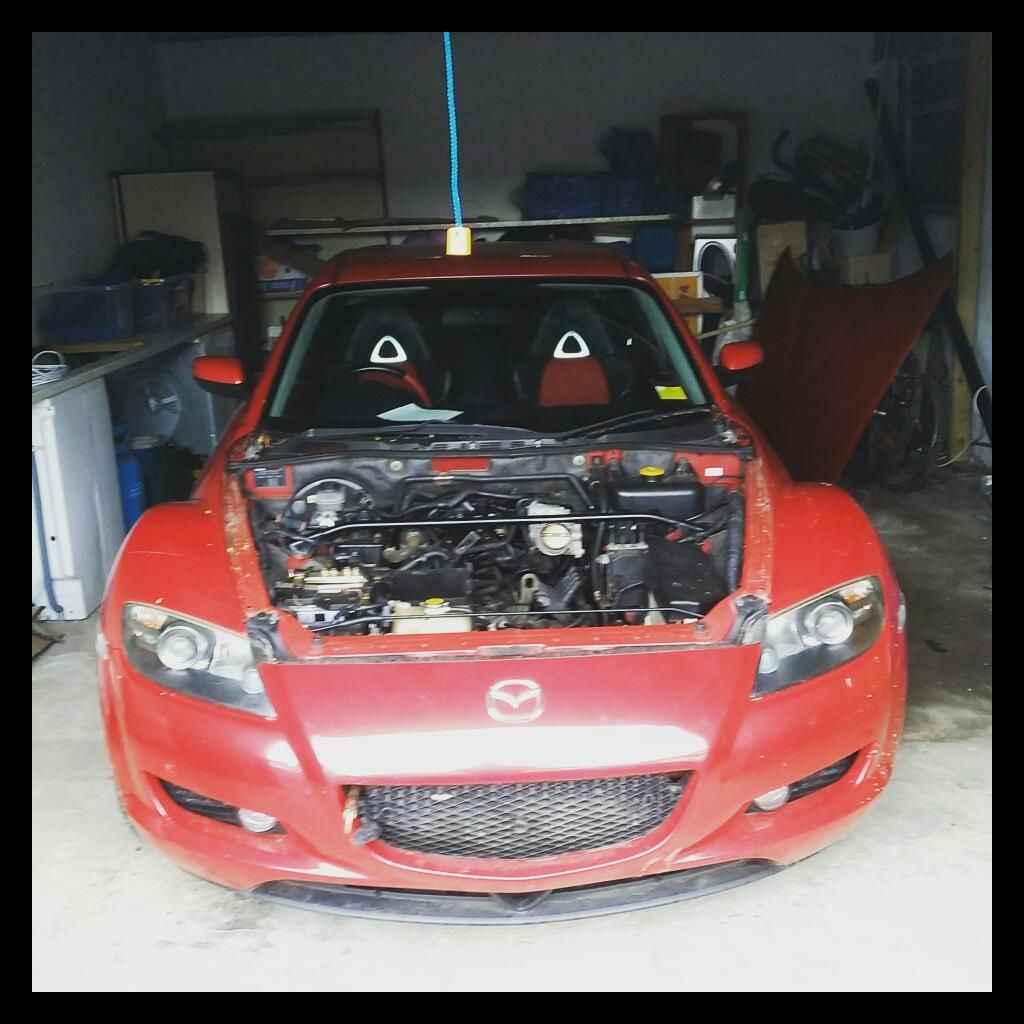

So it's taken a month and a half, but finally I've got my garage sorted.

Tomorrow I'm planning to start stripping out the engine, so I will update you tomorrow night with some photos.

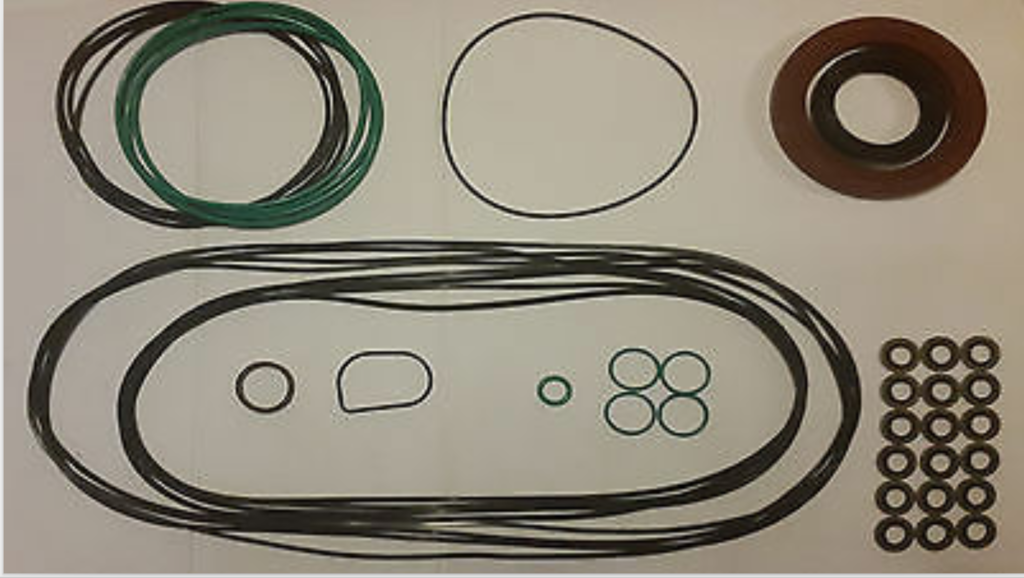

I've been looking at these seals on ebay. The description says that they are Viton seals. I'm assuming that Viton is the manufacturer. Has anyone heard of these or had any experience with them?Image
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
DanBass
Communications Team
Communications Team
Posts: 14151
Joined: Tue Apr 24, 2012 8:18 pm
RX-8: PZ
Colour: Galaxy Grey
Location: Rogerstone, Gwent
Has thanked: 19 times
Been thanked: 155 times

Re: Nathans Velocity Red RX8

Post by DanBass » Sat Aug 22, 2015 3:57 pm

Viton is the material they're made from. :) they're good seals, that looks like an Atkins rotary kit. If you're doing a rebuild, just buy a full kit, all the seals there will be included.


Sent from my iPhone using Tapatalk
'96 NA8 MX-5: MeisterR, and soon to be choo-choo'd
'56 Galaxy Grey PZ: sold

'54 Brilliant Black 192: sold
'54 Titanium Grey 192: rebuilt, sold
'53 plate Velocity Red 192: being rebuilt...still

‘67 Sunset Orange BMW 335D MSport Touring
'01 Topaz Blue BMW 330ci convertible

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Mon Aug 24, 2015 1:02 pm

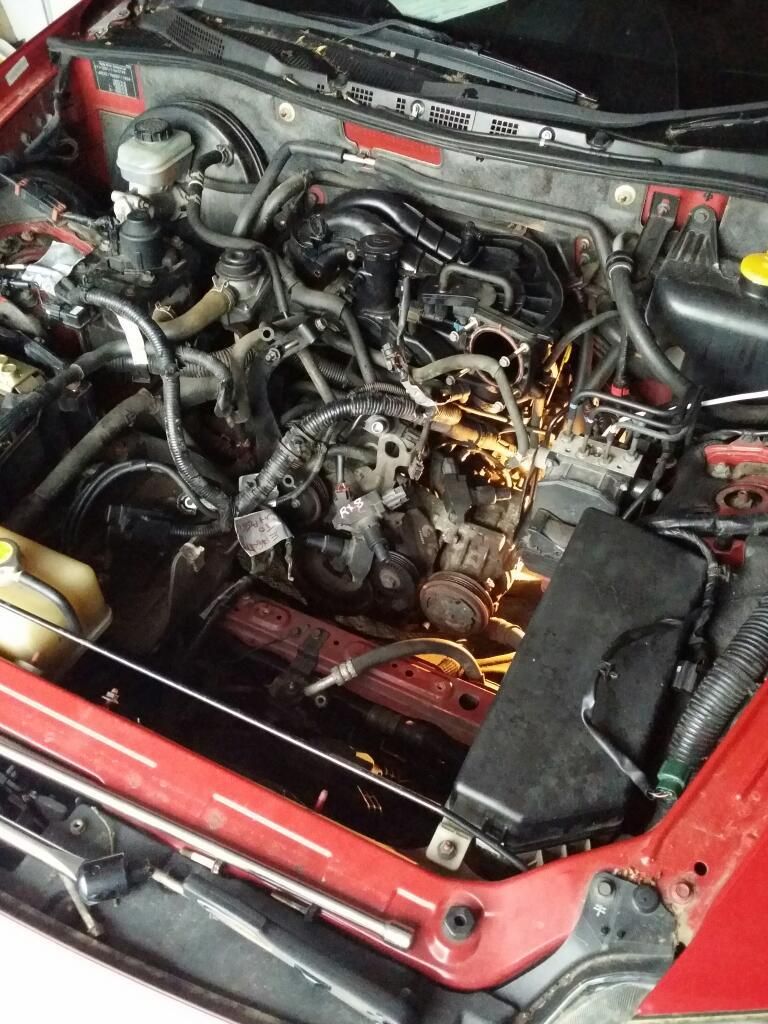

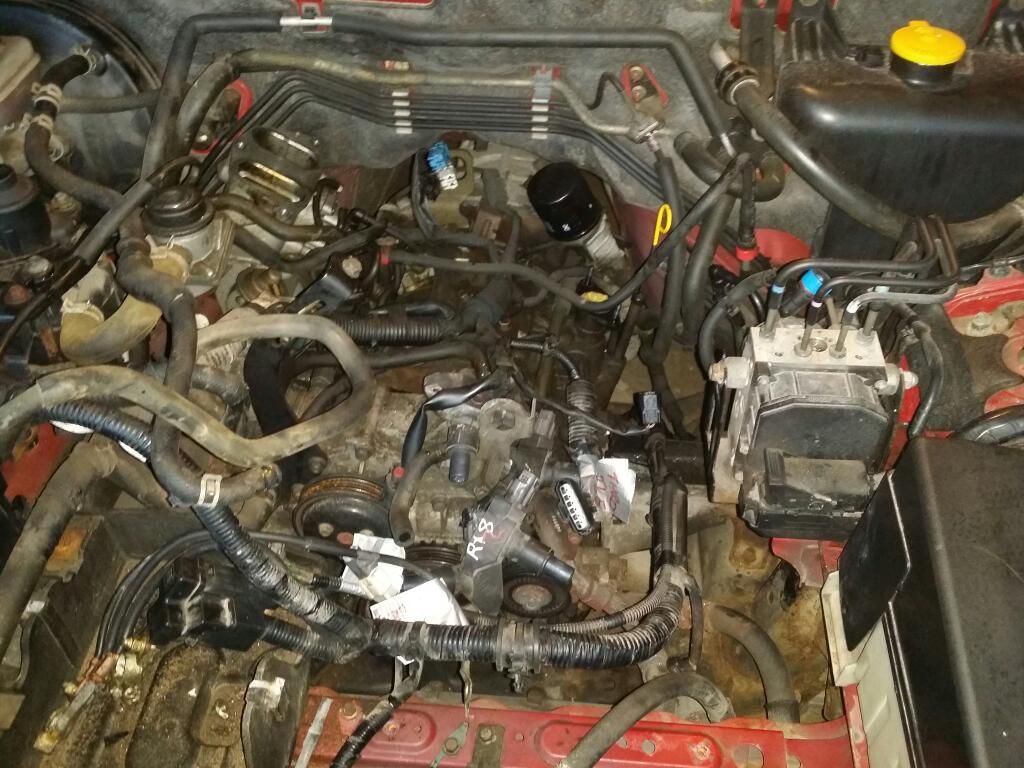

So this weekend I managed to spend a few hours in the new garage and started to strip the engine bay out.


Removing the air box / filter, ignition coils and the alternator.

Then moved on to the air con pump, the upper section of the intake manifold
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Wed Aug 26, 2015 8:24 pm

I'm wanting to start running the cable for the relocation of the battery to the boot.

Does it matter what type of cable I use?
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
Harrizone
Founder Member
Founder Member
Posts: 7082
Joined: Fri Oct 31, 2003 5:23 pm
RX-8: 231
Colour: Winning Blue
Location: Southend-on-Sea
Has thanked: 42 times
Been thanked: 328 times

Re: Nathans Velocity Red RX8

Post by Harrizone » Wed Aug 26, 2015 9:18 pm

Well best to not use speaker wire. :D :getmecoat:
These users thanked the author Harrizone for the post:
zippyonline (Wed Aug 26, 2015 10:33 pm)
Now a distant memory unfortunately.

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Thu Aug 27, 2015 11:45 am

I've been reading a DIY Battery relocation blog on RX8club.com. The guy says to use 2ga cable?

Doing a google search I only seem to be able to find US sellers. Anyone know who in the UK might sell this type of cable?

Does it need to be 2GA?
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Mon Aug 31, 2015 5:50 pm

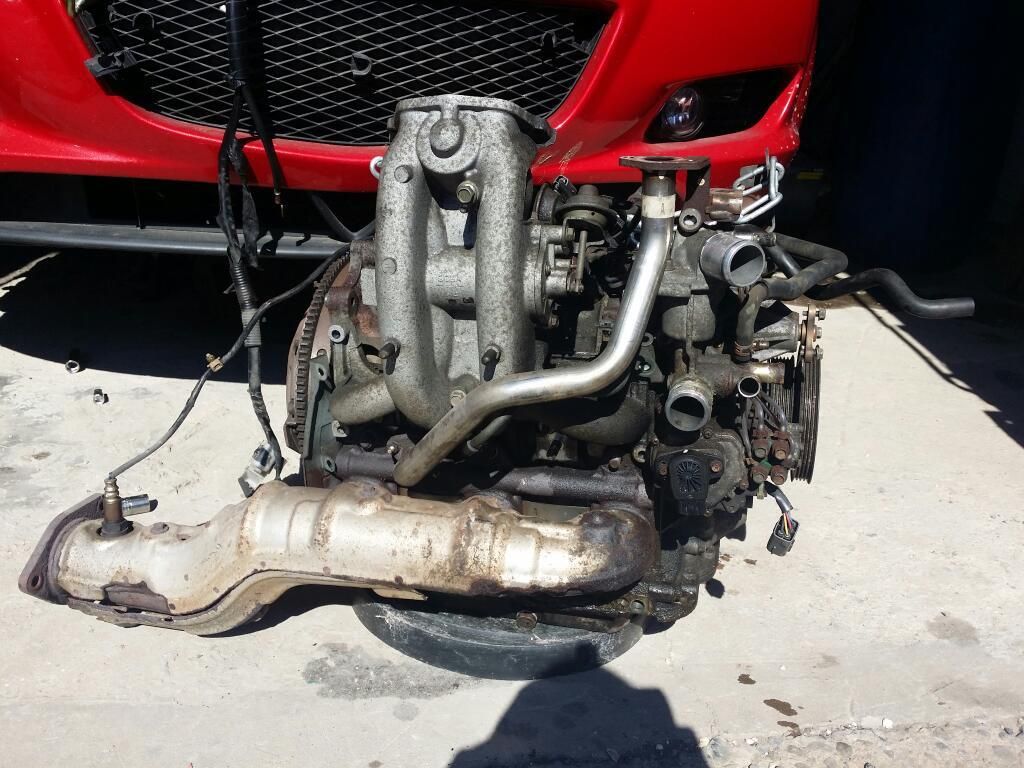

This weekend I managed to get the engine out of the car ready for strip down.

I removed the centre section of the exhaust, removed the bolts from around the bell housing and unfastened the engine mounts. I must say that bolt to top of the bell housing were particularly difficult to remove.


I had hoped that I might have been able to remove the inlet and exhaust manifolds but a few of the bolts were inaccessible.


04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Fri Sep 04, 2015 11:52 pm

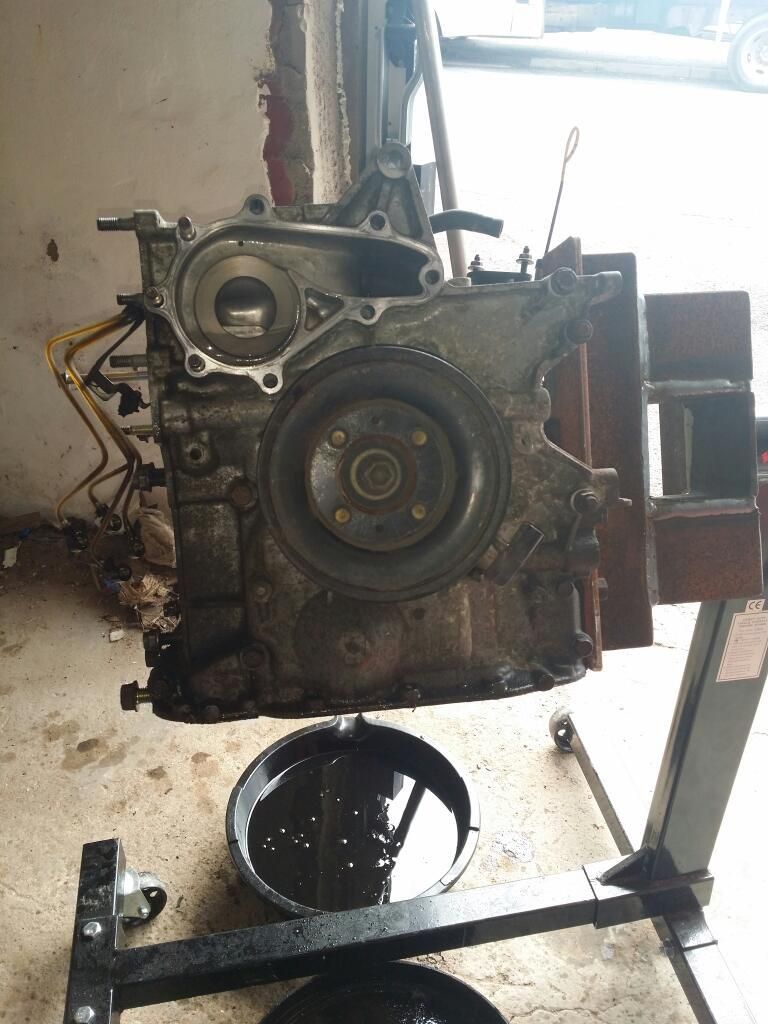

So this afternoon I started the engine strip down but unfortunately did get chance to finish, but here are some photos of what I got done today:

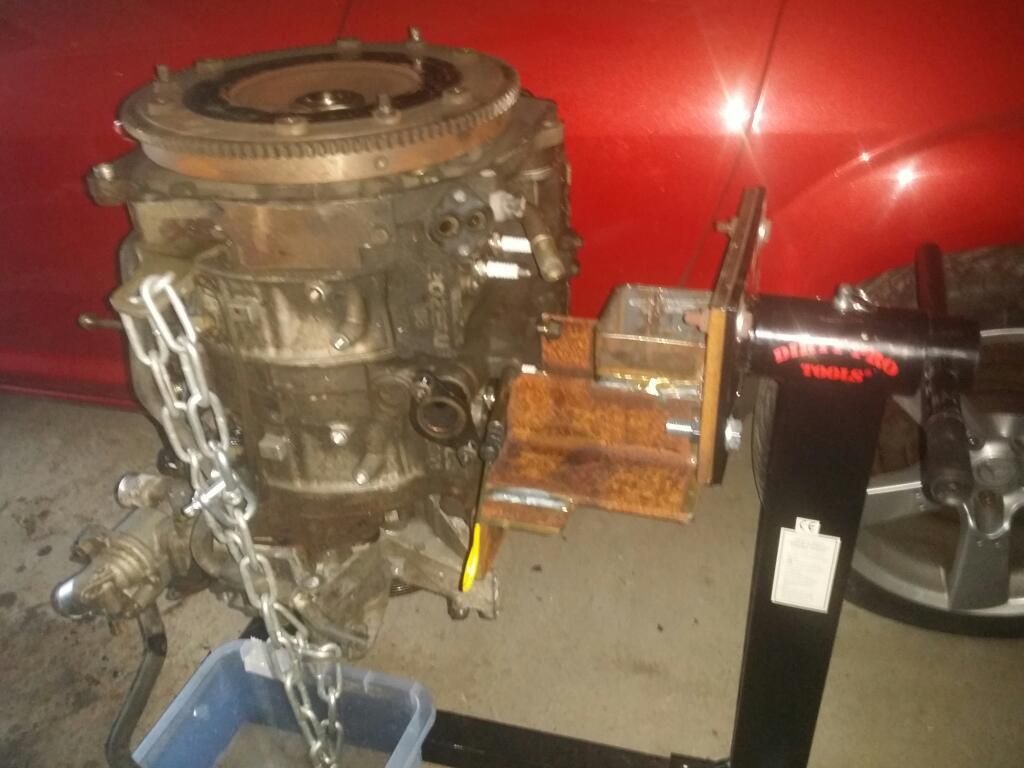

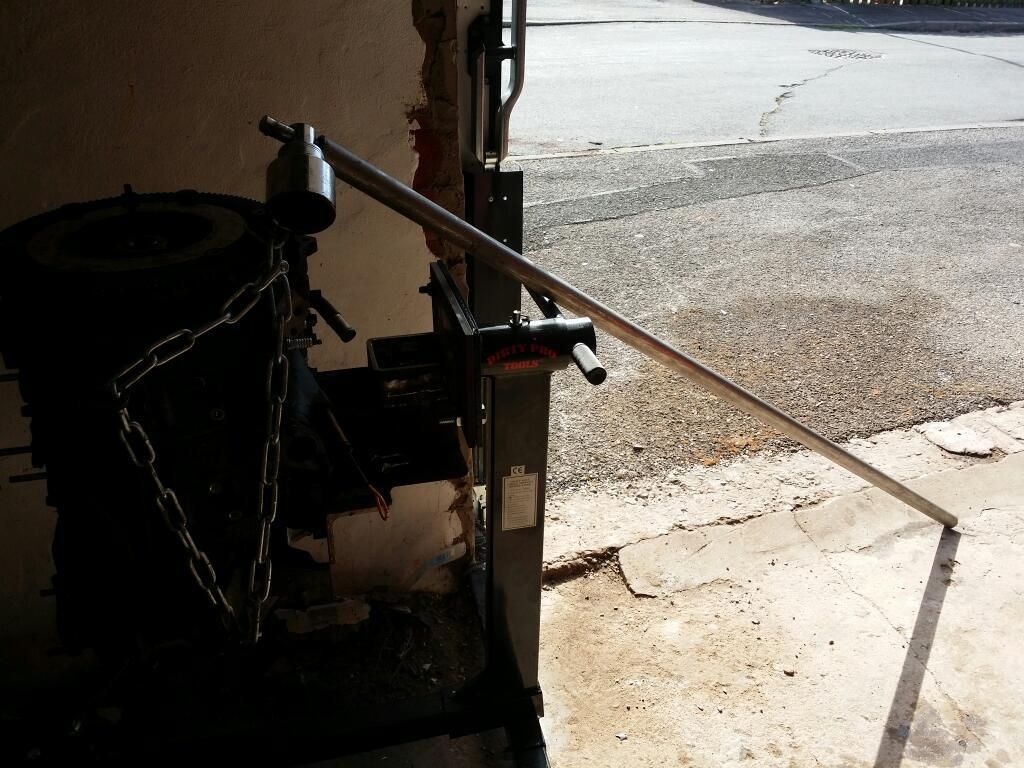

This week I had the guys at work make me an adapter for the engine stand

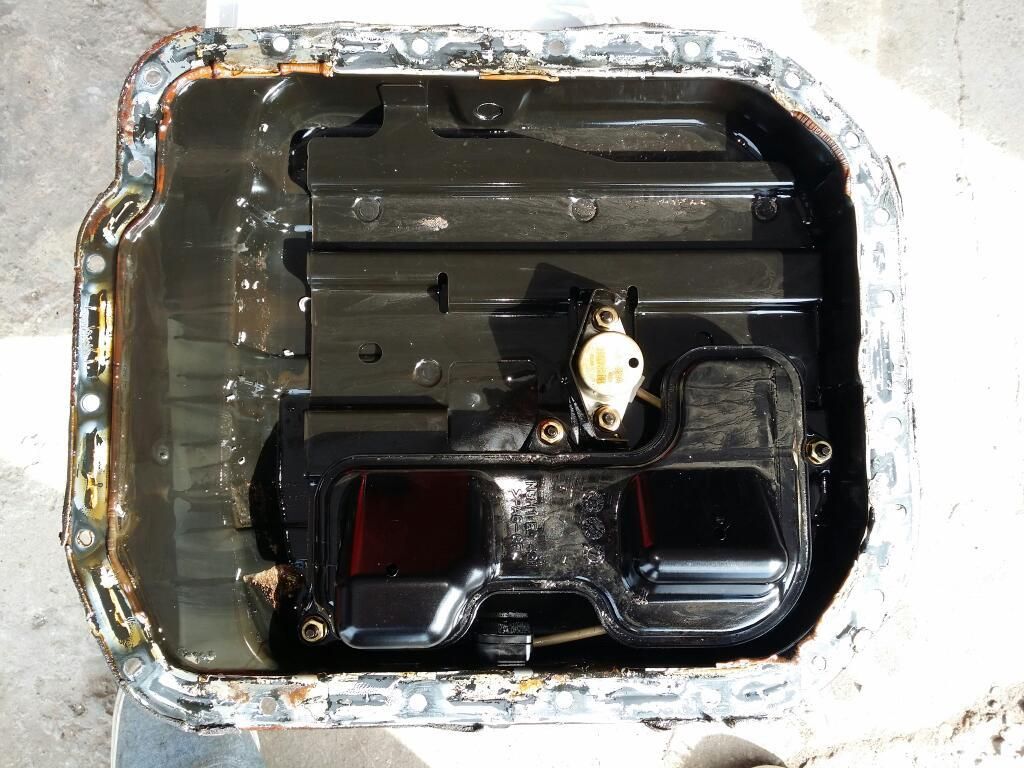

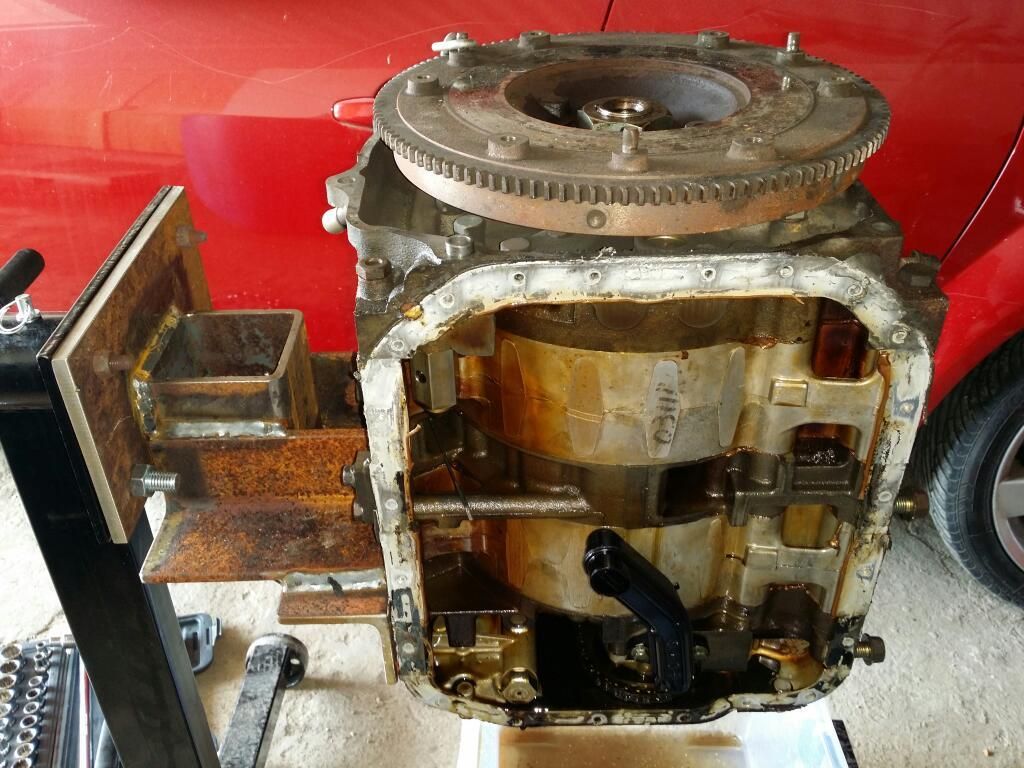

First off I removed the sump which turned out to be in good condition.Image

The I got out the 3/4 socket set and my 6ft of seamless pipe and tackled the flywheel nut. Image

With the flywheel removed I moved onto the pulley nut, again using my 6ft pipe. This proved to be tougher than the flywheel nut. Even the tube was flexing. For both the flywheel nut and the pulley nut, I wedged my engine stand in the corner of my garage to stop the whole stand from turning.

Once the pulley was off I then removed the front engine cover.

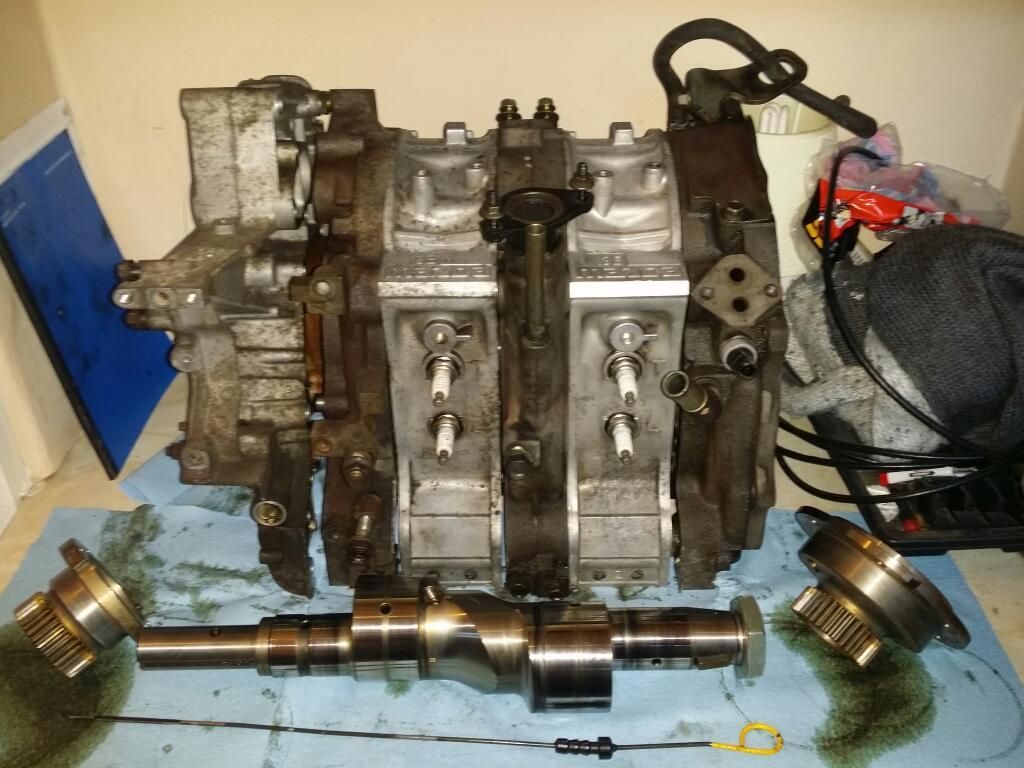

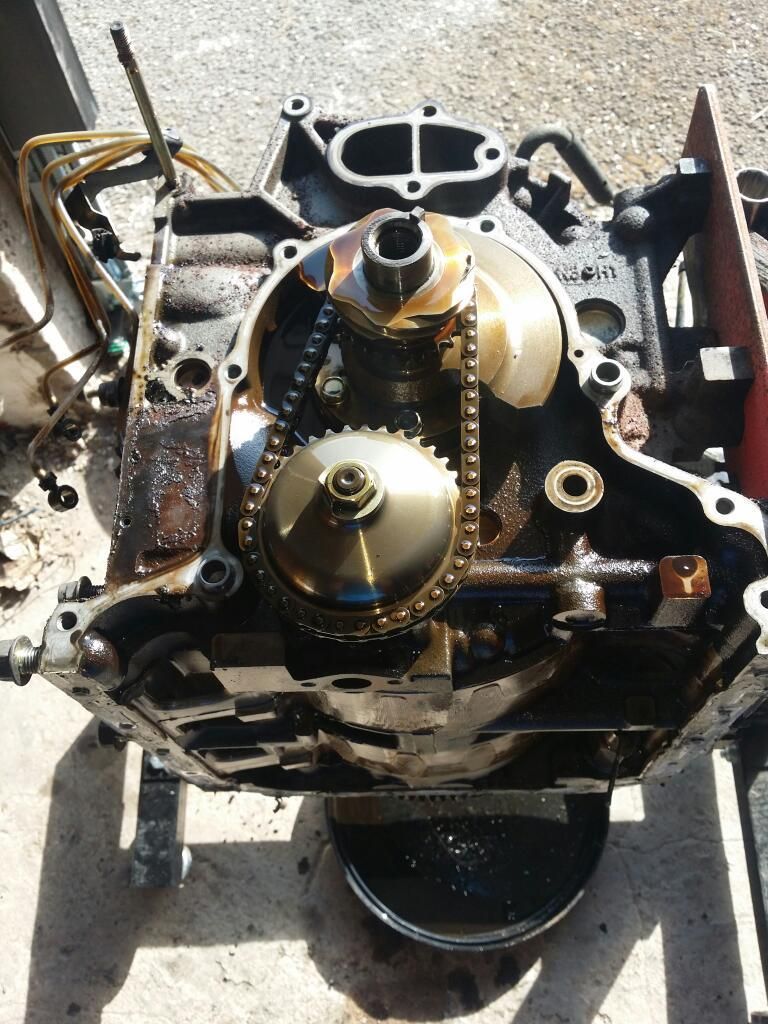

Then the oil pump and chain. To help me when I reassemble the engine I have put all the parts I removed in Sandwich bags with their associated bolts and nuts.

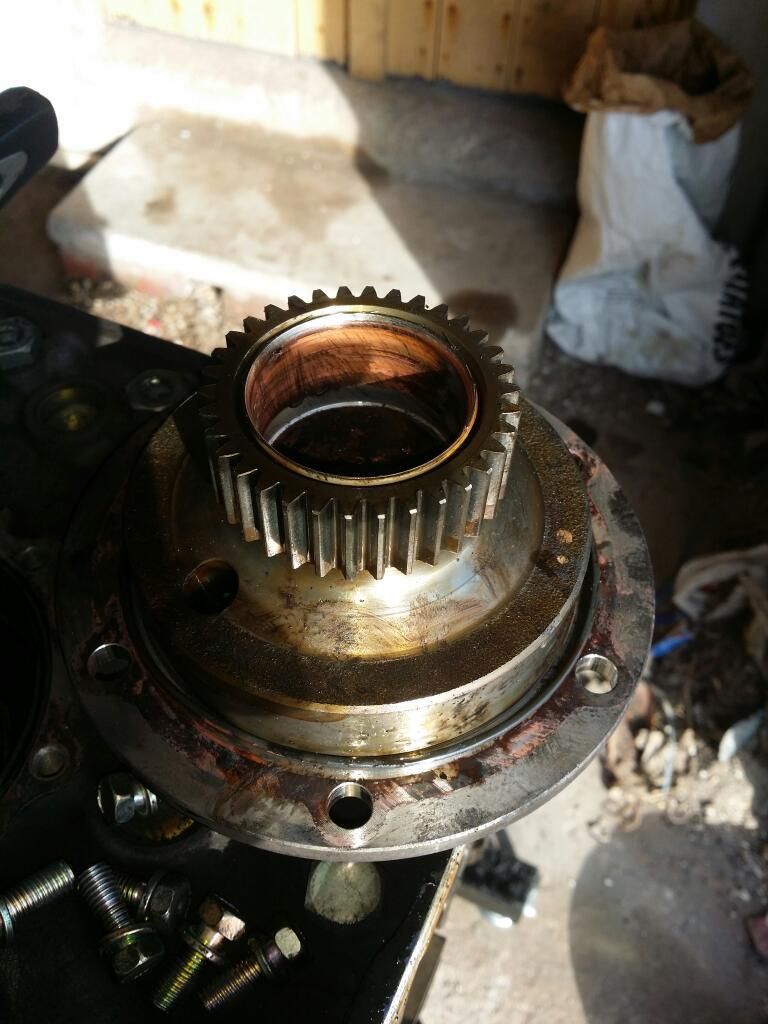

Next I removed the rear stationary gear. I think I'll replace the bearings...

Before removing the rear plate I make up the through bolts with numbers provided in the workshop manual Image

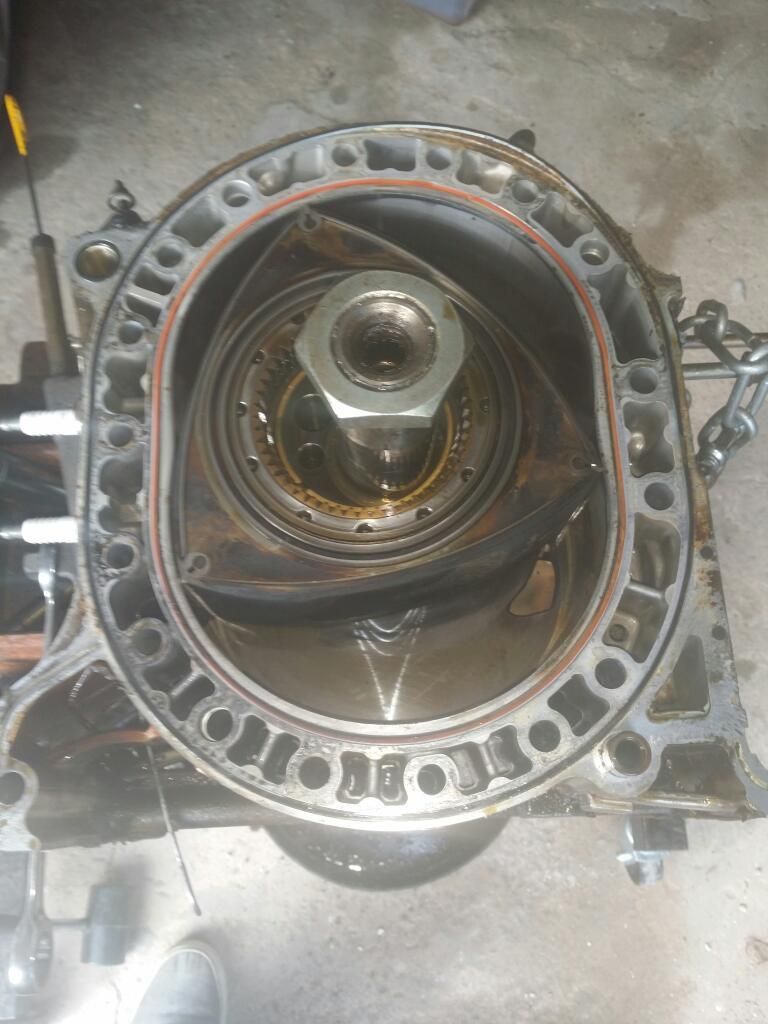

I did get the rear plate, rotor and rotor house removed but I will post photos tomorrow when I have photos that better show their condition.
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
jrmurray1108
Former Member
Former Member
Posts: 2559
Joined: Tue Jul 29, 2014 8:13 pm
RX-8: 231
Colour: Nordic Green
Location: Starcross, Exeter, Devon
Has thanked: 22 times
Been thanked: 64 times

Re: Nathans Velocity Red RX8

Post by jrmurray1108 » Sat Sep 05, 2015 12:02 am

Great post and pics Nathan,

Really helpful, deffo replace stationary bearings and rotor bearings if you can. Might as well get it all done while you are in there :thumleft:

Keep em comin :D
Jay

Gone but not forgotten - Nordic Green bridgey of awesomeness - http://www.rx8ownersclub.co.uk/forum/vi ... 04&t=61154

Now rocking a 93 FD3S and a SN95 Mustang Cobra :D

User avatar
MadTaz
Club Member
Club Member
Posts: 2446
Joined: Mon Aug 03, 2009 8:27 pm
RX-8: PZ
Colour: Brilliant Black
Location: Ipswich
Has thanked: 10 times
Been thanked: 37 times

Re: Nathans Velocity Red RX8

Post by MadTaz » Sat Sep 05, 2015 12:06 am

You're either going to have a good day or a really bad day tomorrow, that's the way it seems to go. Either all the parts will be ok and reusable or none/few will.

Fingers crossed for you.

User avatar
DanBass
Communications Team
Communications Team
Posts: 14151
Joined: Tue Apr 24, 2012 8:18 pm
RX-8: PZ
Colour: Galaxy Grey
Location: Rogerstone, Gwent
Has thanked: 19 times
Been thanked: 155 times

Re: Nathans Velocity Red RX8

Post by DanBass » Sat Sep 05, 2015 12:34 am

I reckon that'll be ok. That's not the worst bearing I've seen. Is that a score in the copper though?

Great effort. Reminds me I really need to find time to put the engine in my garage together...


Sent from my iPhone using Tapatalk
'96 NA8 MX-5: MeisterR, and soon to be choo-choo'd
'56 Galaxy Grey PZ: sold

'54 Brilliant Black 192: sold
'54 Titanium Grey 192: rebuilt, sold
'53 plate Velocity Red 192: being rebuilt...still

‘67 Sunset Orange BMW 335D MSport Touring
'01 Topaz Blue BMW 330ci convertible

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sat Sep 05, 2015 8:38 am

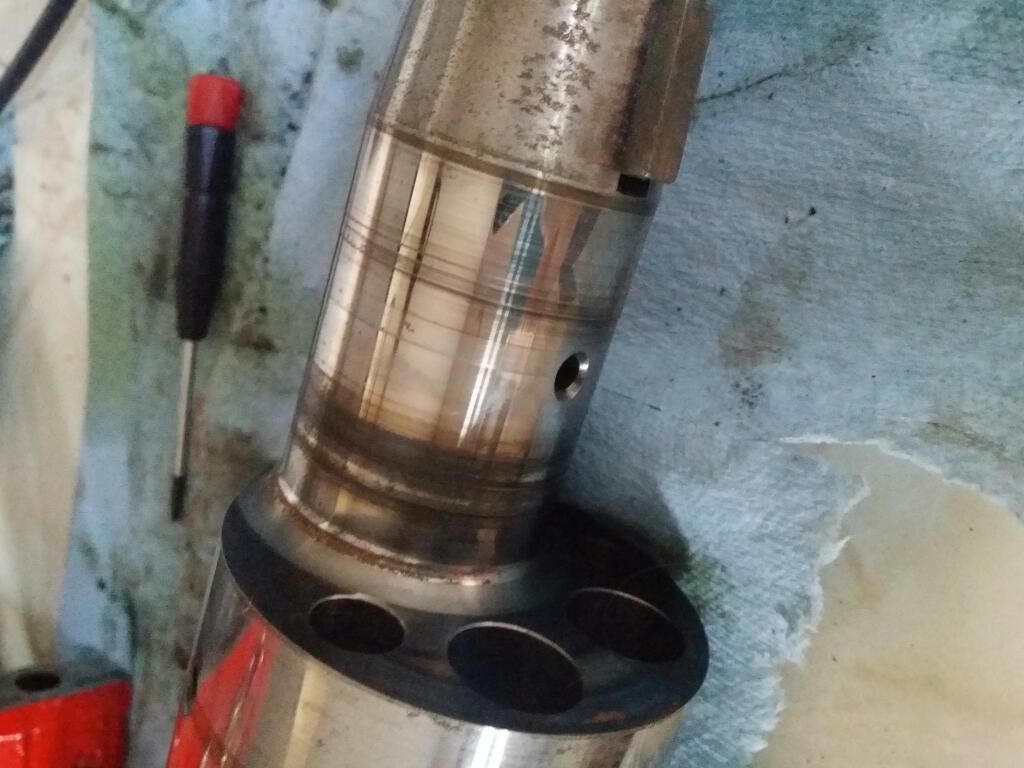

I in the scheme of things the cost of replacing the bearings is nothing so I had planned to replace them unless there turned out to be no wearing. The manual shows a tool for pushing them out, where can I get one?

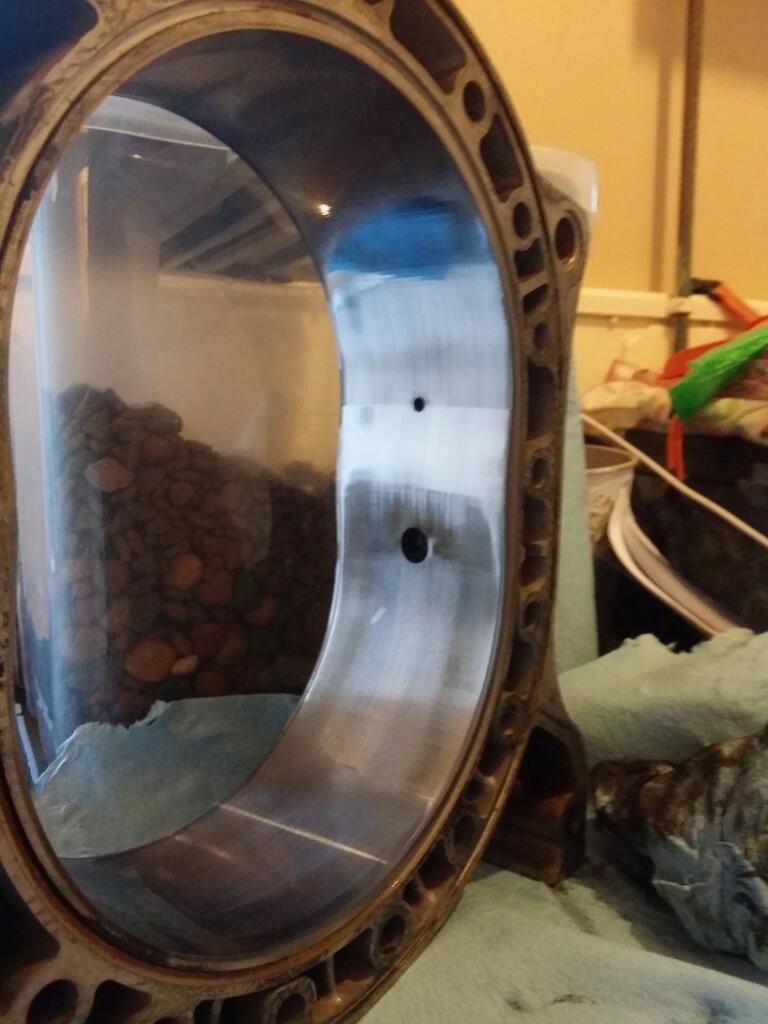

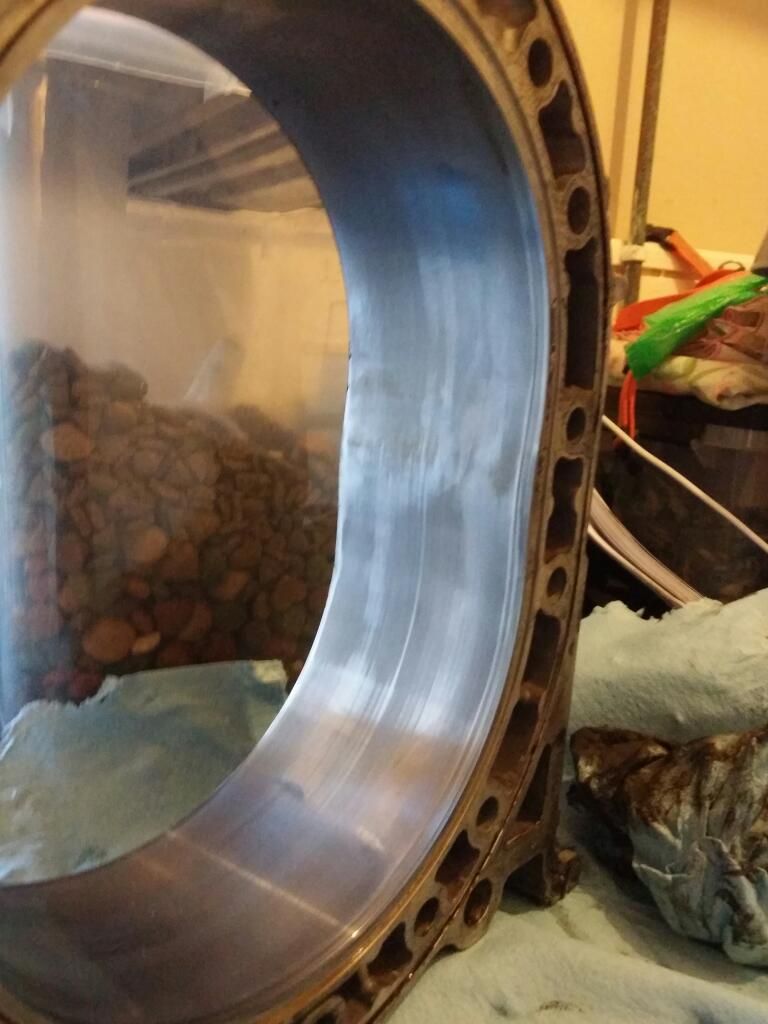

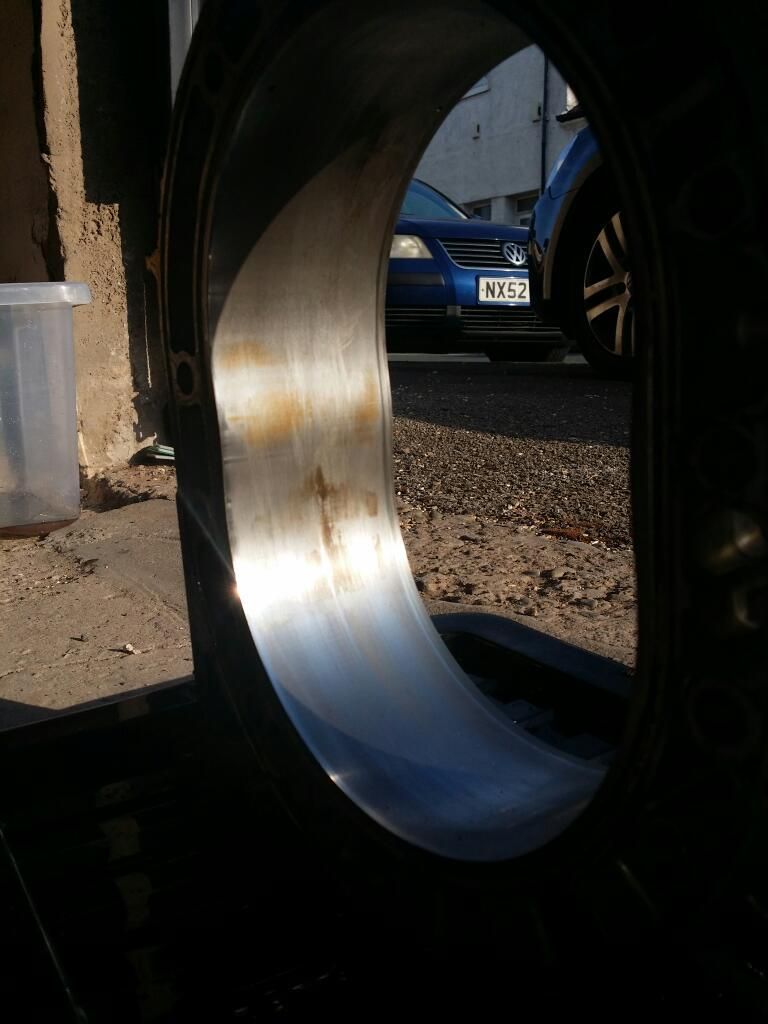

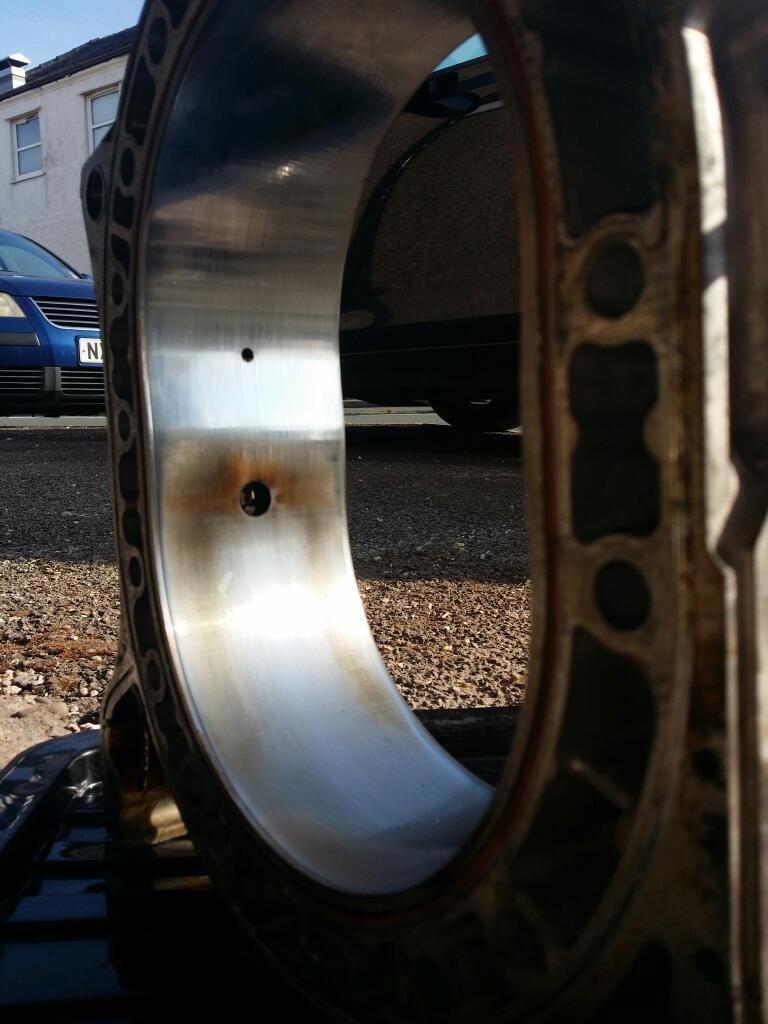

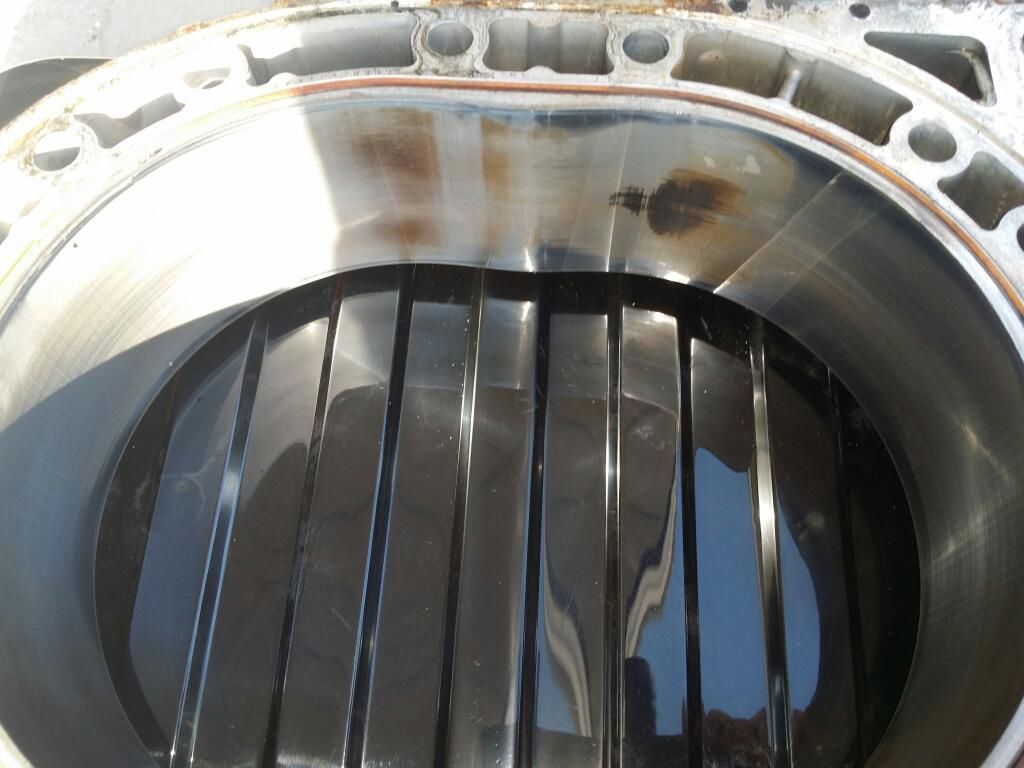

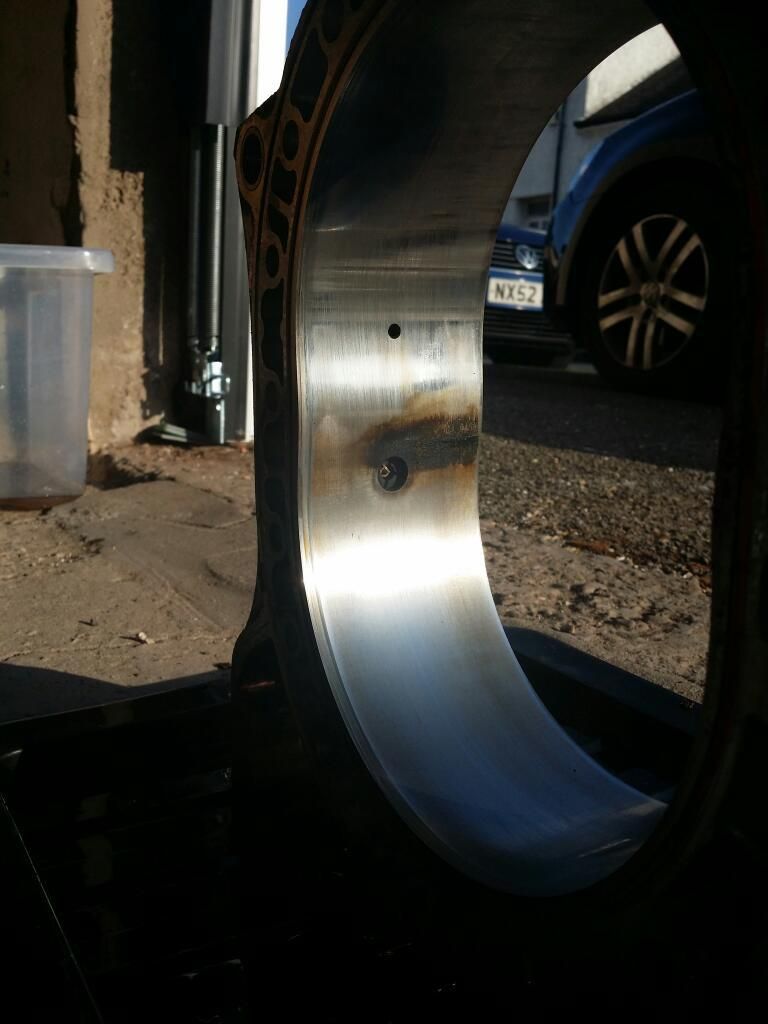

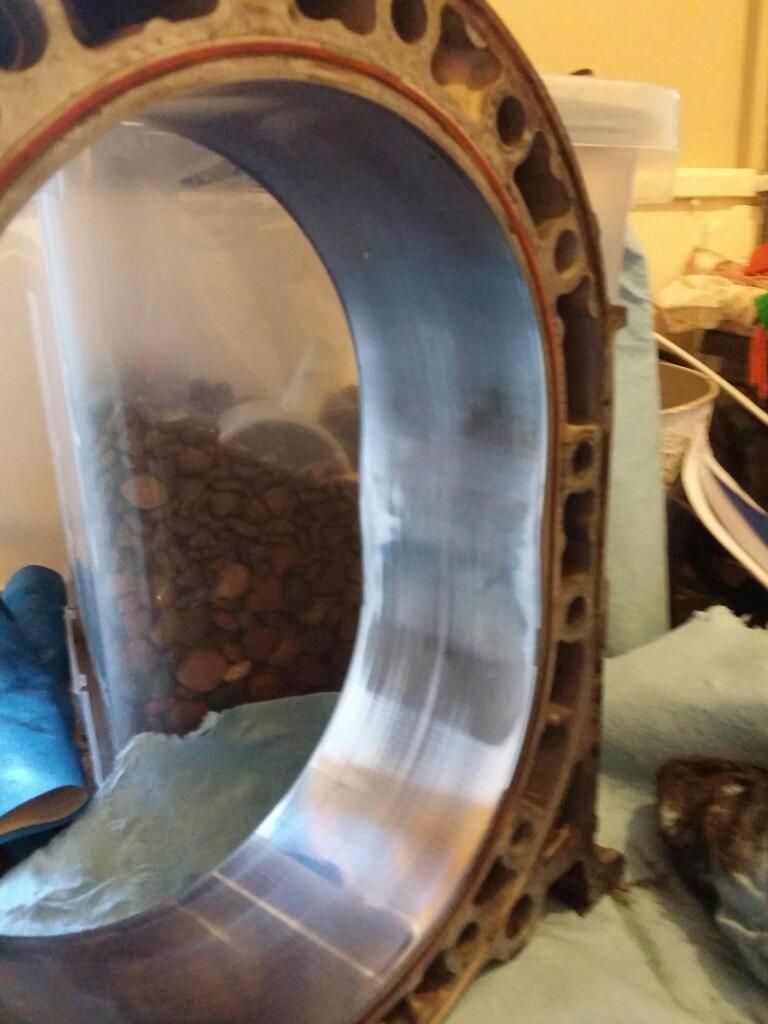

The first rotor housing I removed had black brown staining, I'm guessing from burning oil.

What is best way to clean this off? Will it come off?
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sat Sep 05, 2015 8:23 pm

So it's time for the moment of truth:

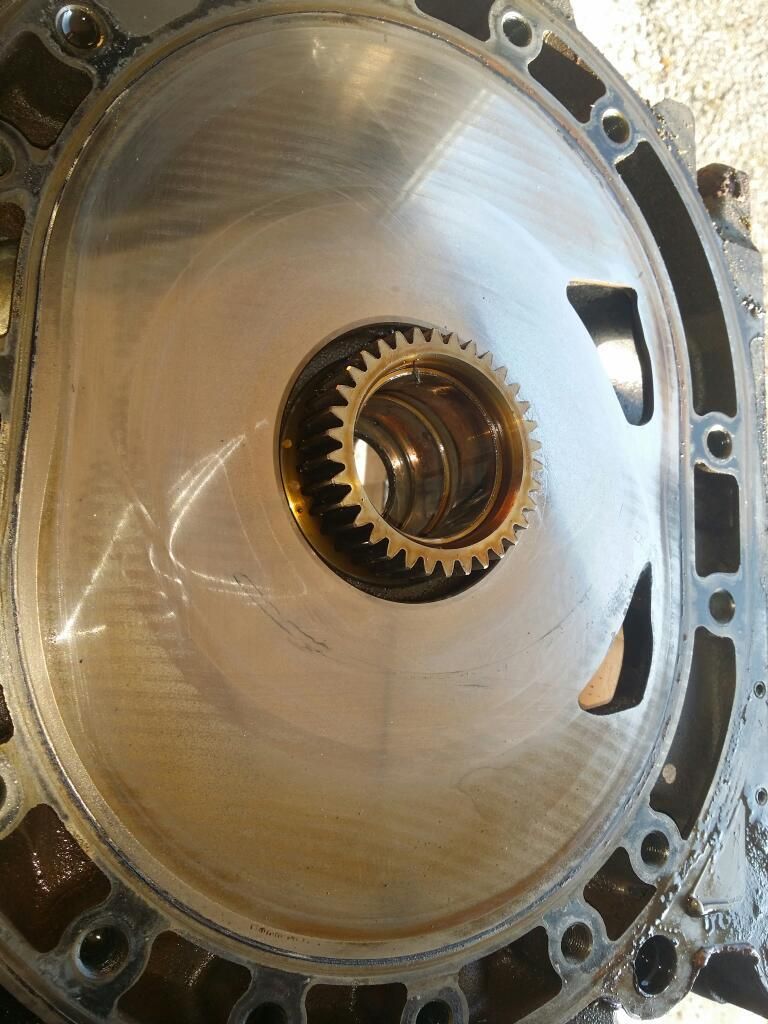

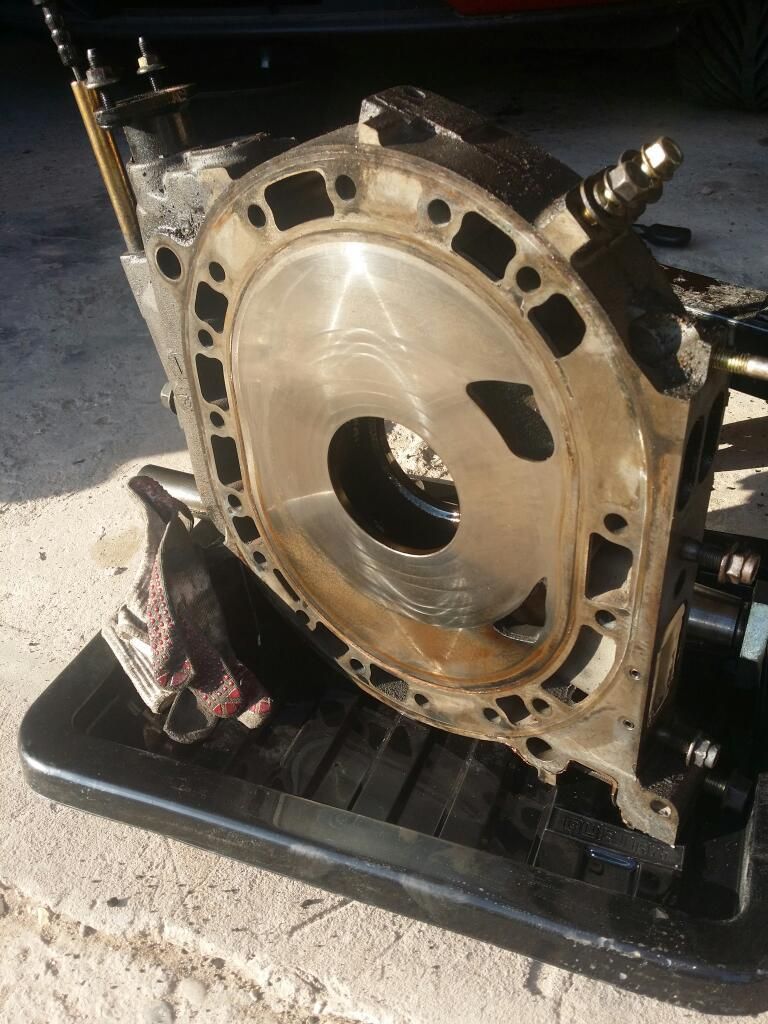

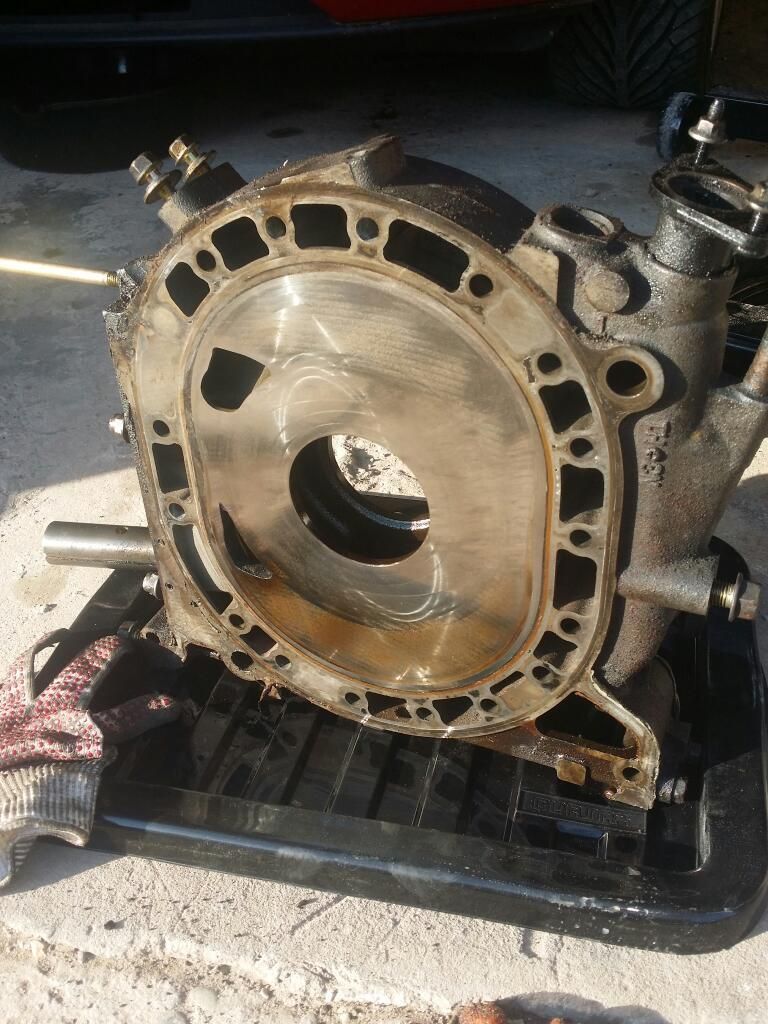

Rear plate removed and a blackened rotor is revealed. Image

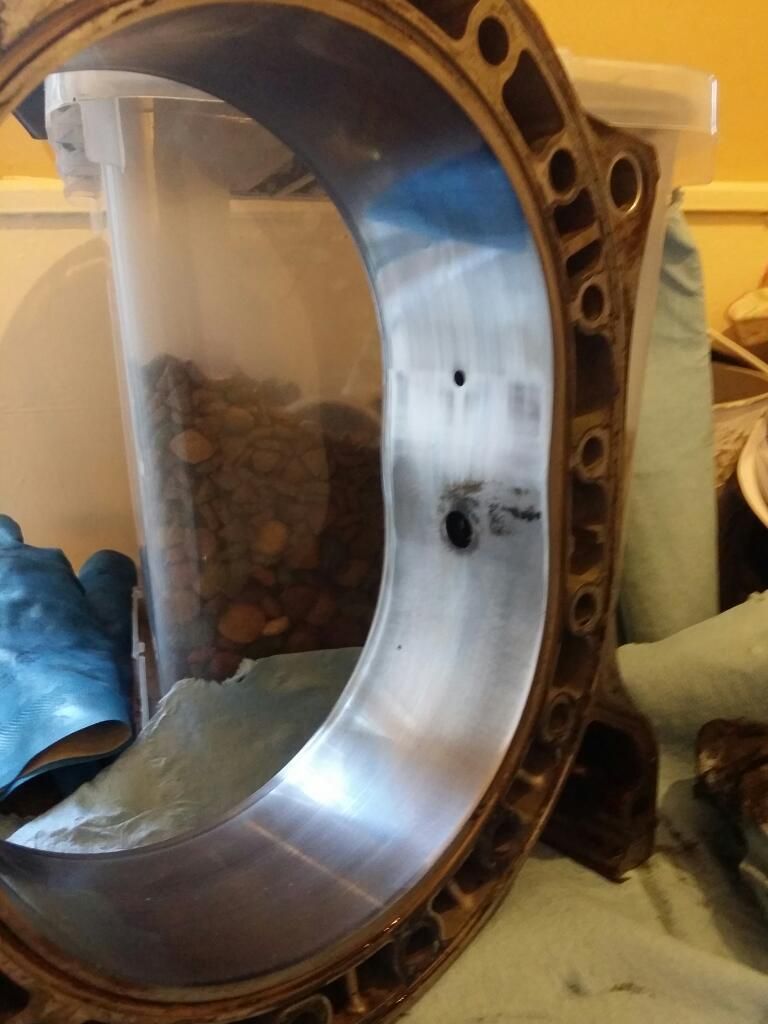

Here's the rear rotor housing.

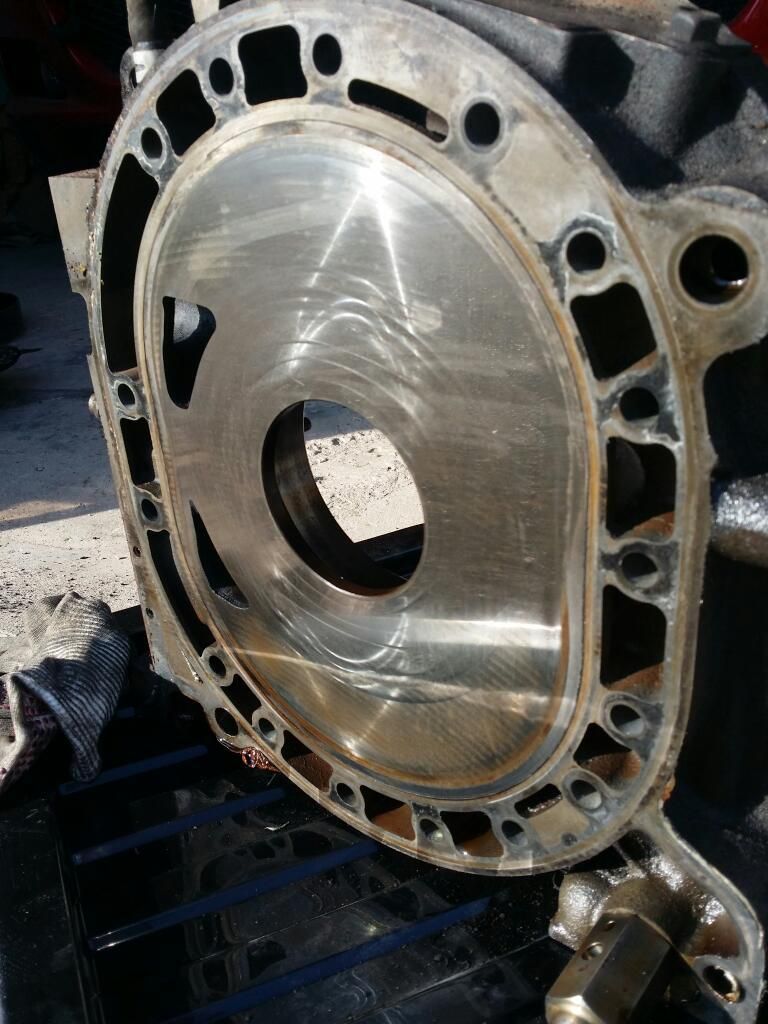

The rear iron plate:Image

The centre iron plate:

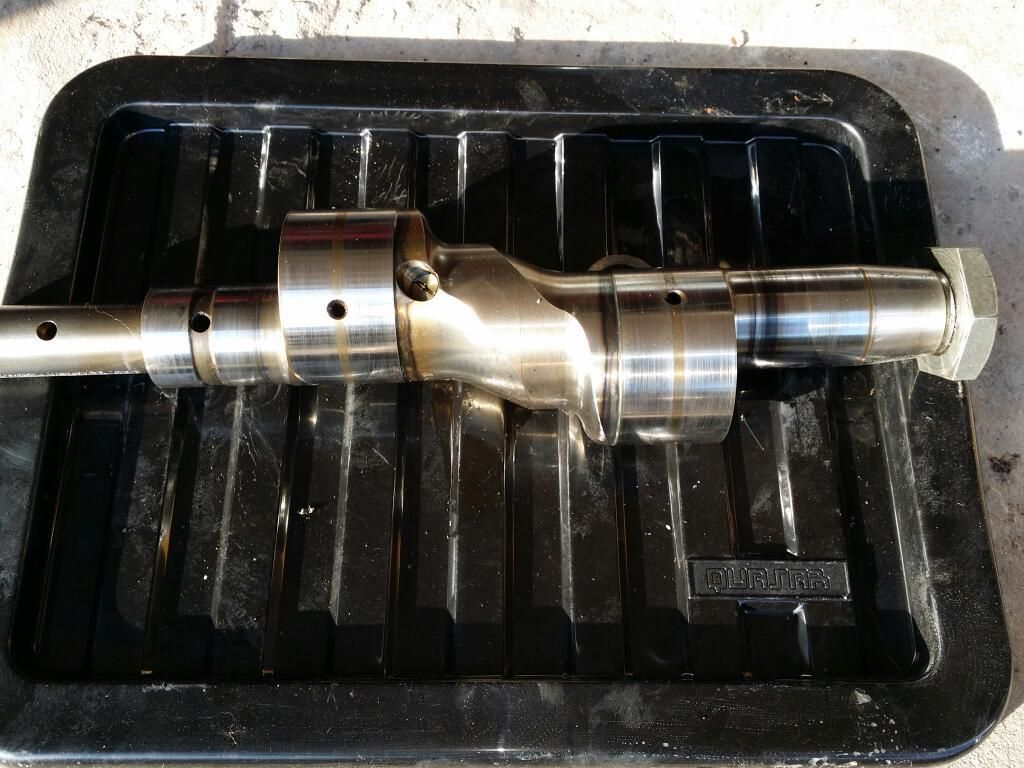

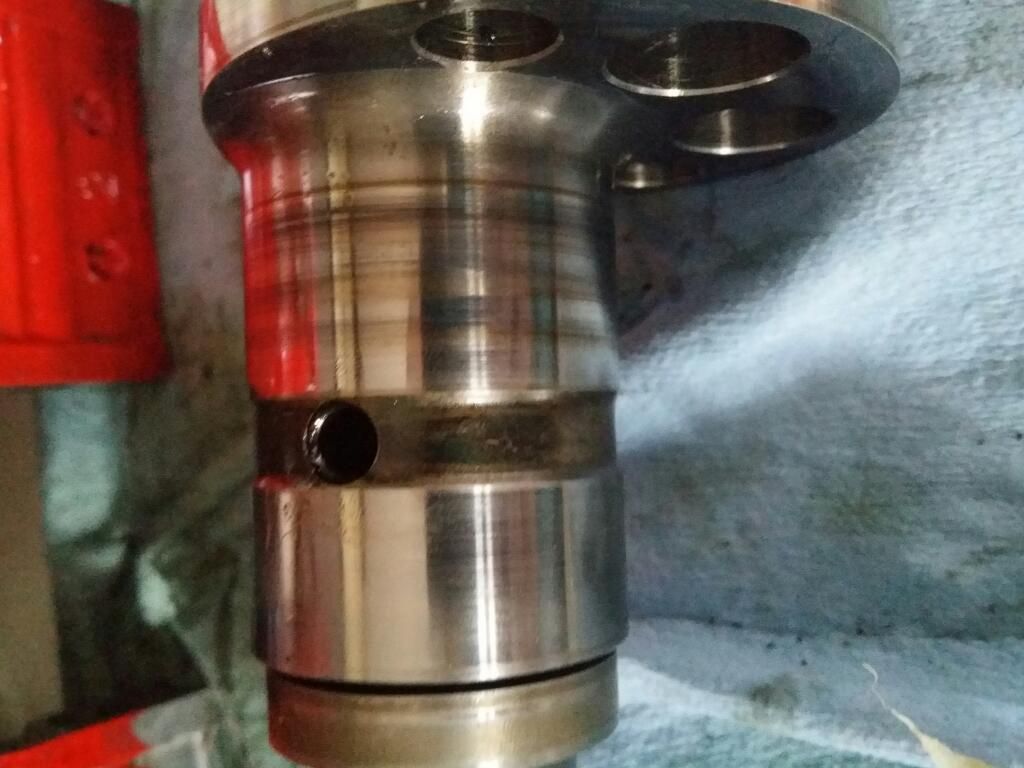

Eccentric shaft:Image

Front rotor housing:ImageImage

Front iron plate:Image

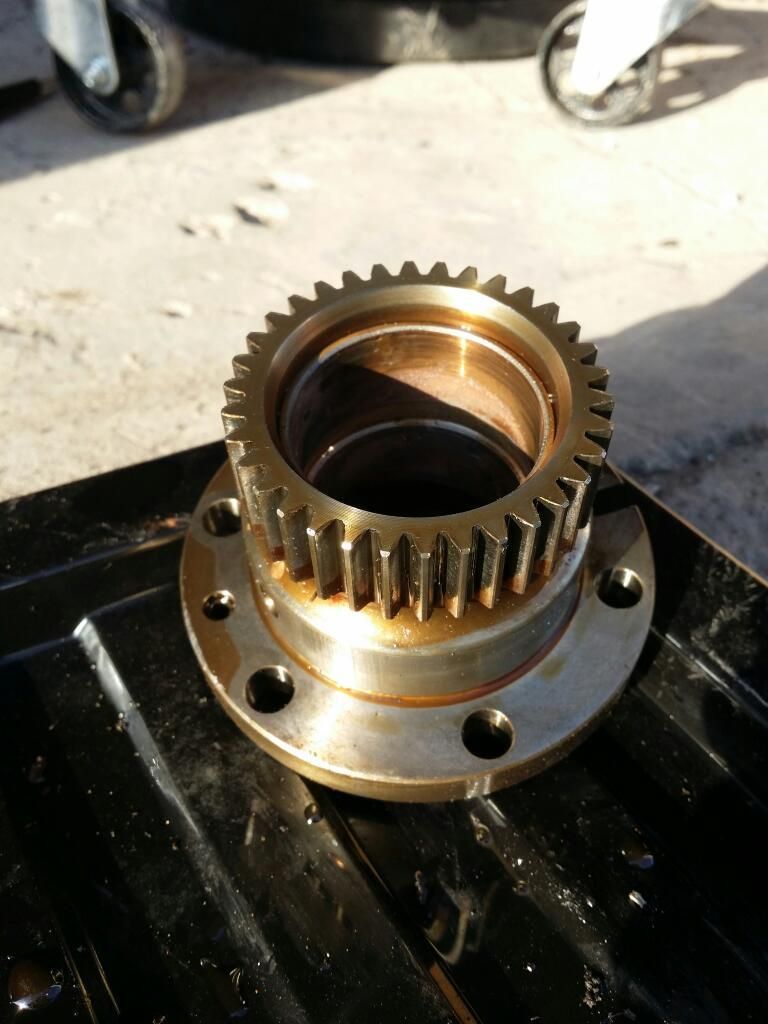

Front stationary gear:Image

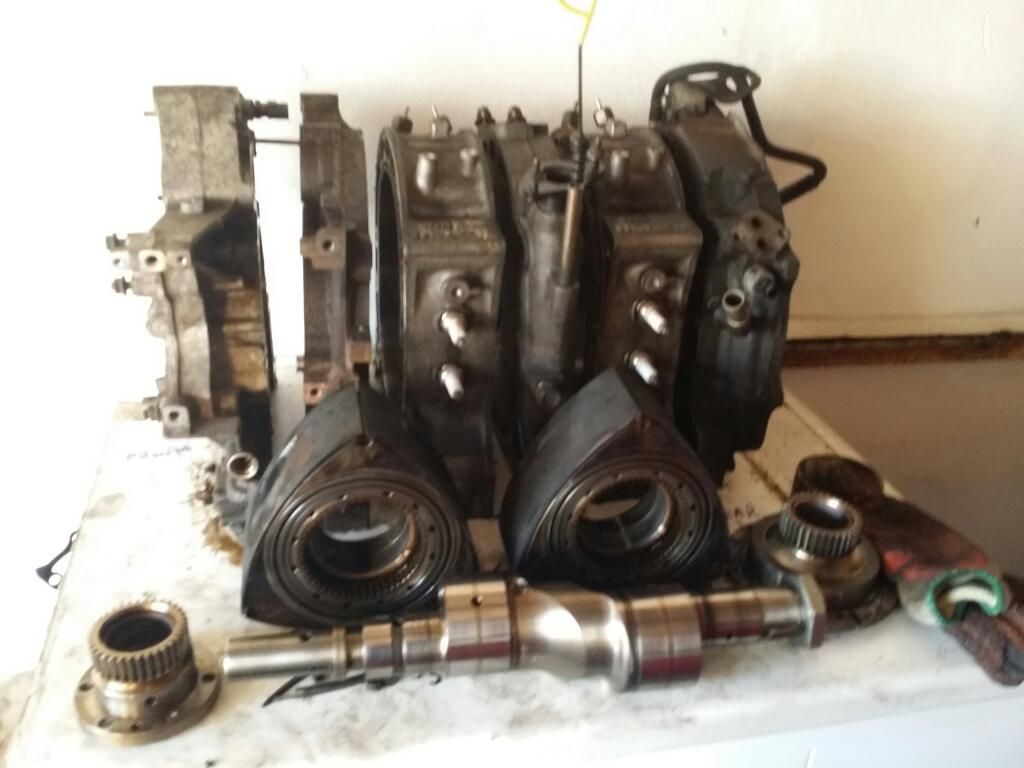

And the whole gang:Image

To me everything looks pretty good. There is no deep scoring. But let me know what you think?
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
minisaki
Former Member
Former Member
Posts: 1933
Joined: Thu Apr 17, 2014 2:02 pm
RX-8: 192
Colour: Brilliant Black
Location: Paisley, Scotland
Has thanked: 162 times
Been thanked: 172 times

Re: Nathans Velocity Red RX8

Post by minisaki » Sat Sep 05, 2015 9:00 pm

Excellent wright up I'll be watching this one progress :thumleft:
Brilliant black 192.
Carbon fibre vented bonnet, carbon fibre boot, carbon fibre Mazdaspeed spoiler, carbon fibre eyebrows, carbon fibre strakes, carbon fibre b-pillers, carbon fibre mirrors, K-Sport 8 pots, Japan Racing Wheels, Meister R CRD+, 10w50 fully synthetic, Castrol 2t racing pre mix and sohn Fed. red lined like she should be. :thumleft: :thumleft:

User avatar
DanBass
Communications Team
Communications Team
Posts: 14151
Joined: Tue Apr 24, 2012 8:18 pm
RX-8: PZ
Colour: Galaxy Grey
Location: Rogerstone, Gwent
Has thanked: 19 times
Been thanked: 155 times

Re: Nathans Velocity Red RX8

Post by DanBass » Sat Sep 05, 2015 9:01 pm

That all looks pretty good to be honest. Most of the black marks will clean off.

Tackle the rotors with a wire brush on a drill for the combustion faces. Just be very careful around the apex seal slots and don't allow the brush to rotate against them as they can distort.

A roloc pad on a drill is best for cleaning up irons and the sides of the rotors. Use a medium compound and lots and lots of parts cleaner of similar, don't let it get too hot.


Sent from my iPhone using Tapatalk
'96 NA8 MX-5: MeisterR, and soon to be choo-choo'd
'56 Galaxy Grey PZ: sold

'54 Brilliant Black 192: sold
'54 Titanium Grey 192: rebuilt, sold
'53 plate Velocity Red 192: being rebuilt...still

‘67 Sunset Orange BMW 335D MSport Touring
'01 Topaz Blue BMW 330ci convertible

User avatar
DanBass
Communications Team
Communications Team
Posts: 14151
Joined: Tue Apr 24, 2012 8:18 pm
RX-8: PZ
Colour: Galaxy Grey
Location: Rogerstone, Gwent
Has thanked: 19 times
Been thanked: 155 times

Re: Nathans Velocity Red RX8

Post by DanBass » Sat Sep 05, 2015 9:01 pm

Be careful cleaning the housing faces. They mark really easily, so just a wipe down to get rid of the marks with degreaser should be enough.


Sent from my iPhone using Tapatalk
'96 NA8 MX-5: MeisterR, and soon to be choo-choo'd
'56 Galaxy Grey PZ: sold

'54 Brilliant Black 192: sold
'54 Titanium Grey 192: rebuilt, sold
'53 plate Velocity Red 192: being rebuilt...still

‘67 Sunset Orange BMW 335D MSport Touring
'01 Topaz Blue BMW 330ci convertible

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sat Sep 05, 2015 9:13 pm

Thanks for the advice Dan
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
MadTaz
Club Member
Club Member
Posts: 2446
Joined: Mon Aug 03, 2009 8:27 pm
RX-8: PZ
Colour: Brilliant Black
Location: Ipswich
Has thanked: 10 times
Been thanked: 37 times

Re: Nathans Velocity Red RX8

Post by MadTaz » Sat Sep 05, 2015 10:02 pm

Not the best I've seen but definitely not the worst either! To be fair you have done pretty well, the E shaft looks like it has some wear but difficult to tell from the photos.

Front and rear irons look fine, centre ok, housings are ok from what I can see although the chipping at the edge looks quite prominent.

You won't really know until all is cleaned up. But on the face of it all looks ok.

Keep up the good work!

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sun Sep 06, 2015 8:00 pm

This afternoon I set about cleaning the engine:


Front rotor housing:


Rear rotor housing:


E-shaft and stationery gears cleaned:
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sun Sep 20, 2015 11:02 am

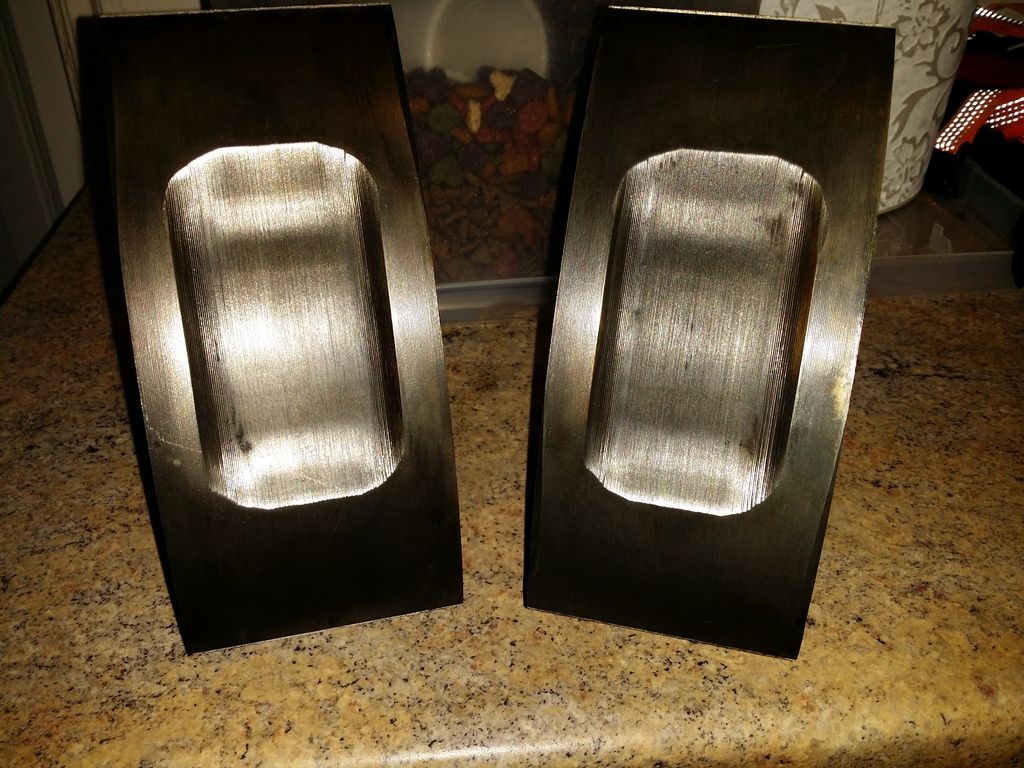

This weekend got the rotors cleaned up.

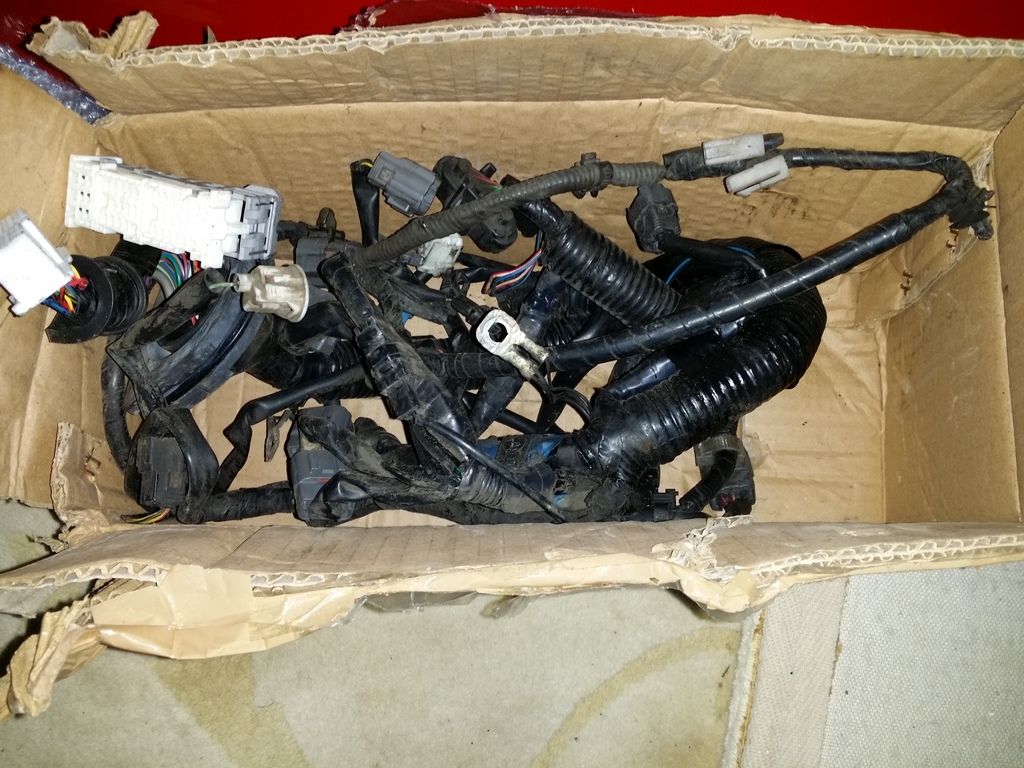

Also received my engine loom which I'm going to use to extend / tidy my existing loom.


Anyone have a battery to starter motor / alternator loom?
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sun Oct 25, 2015 11:23 am

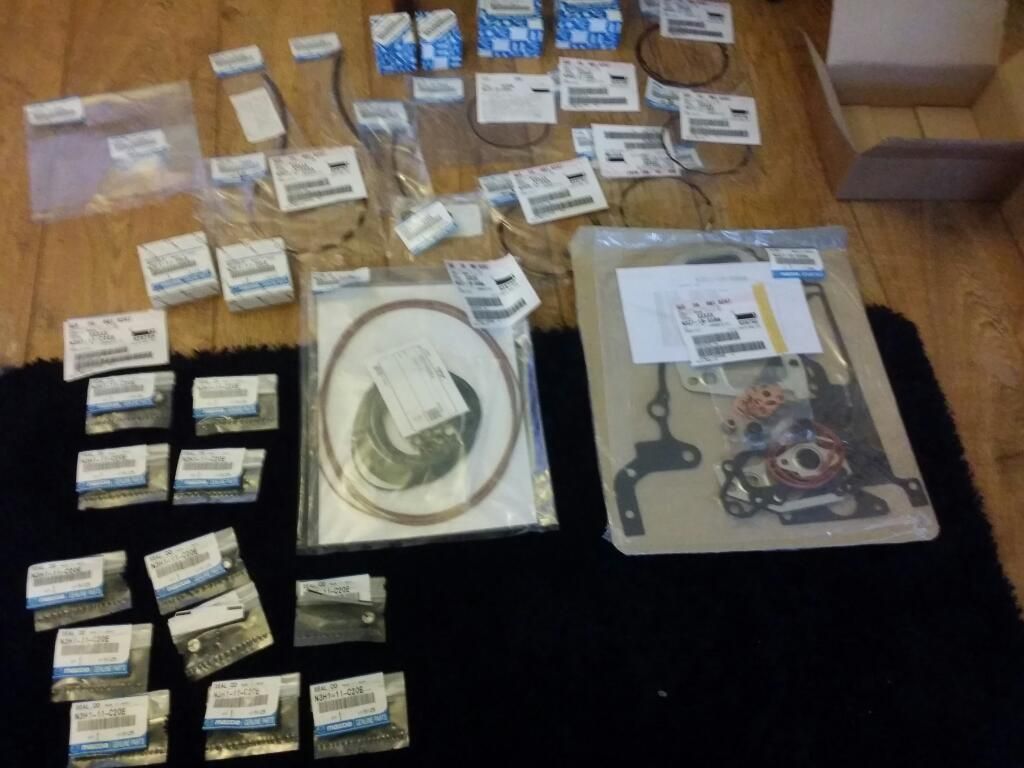

This week I received my rebuild kit thanks to MadTaz who sourced it for me. So if your looking for a rebuild kit yourself give him a shout, he's been very helpful.

The kit I have is mainly OEM with exception of the apex seals which are the Atkins Advanced Black Seals. I have also opted for the 231 bearings, updated oil regulator and thermal pellet.


On 20th November I'm due to got down to Rotary Rev's to have my plates ported, once this is done I'll be starting the rebuild.
These users thanked the author nnrouty for the post:
MadTaz (Sun Oct 25, 2015 1:27 pm)
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

User avatar
nnrouty
Former Member
Former Member
Posts: 104
Joined: Mon Apr 20, 2015 11:42 am
RX-8: 192
Colour: Velocity Red
Location: West Cumbria
Has thanked: 1 time
Been thanked: 2 times

Re: Nathans Velocity Red RX8

Post by nnrouty » Sat Nov 21, 2015 10:01 am

So yesterday we had a trip to Rotary Revs and met Ben and his guys.

Collected my new Exedy clutch and D585 coil kit.




I also took my front and rear stationary gears and rotors to have the bearings replaced and had my irons street ported too.

While there Ben diagnosed my engine with having bearing failure on the rear gear where it had slipped.

Ben advised me to check the eccentric shaft:

What do you guys think? The shaft has gone blue where it sat in the bearings but the wear can't be felt by hand.




These users thanked the author nnrouty for the post:
PhilR (Sat Jan 16, 2016 7:52 pm)
04 Velocity Red 192PS Street ported & Rebuilt Dec 2015 - D585 coils - Magnacore Leads - HEL Braided Clutch Line

09 Golf TSI - Black - for sale

Post Reply

Return to “Personal Car Projects and Mods”
